Features:
1、Color 7-inch high-sensitivity touch resistive screen, can be operated with gloves. User-friendly interface, simple and convenient operation;
2、MCU control, brushless motor drive, stable operation, low noise, high speed accuracy, no toner pollution;
3、Structural self-locking and motor self-locking double locking function, with door lock safety detection and door cover unclosed interface reminder;
4、atented design of motor anti-condensation, to prevent condensation from corroding bearings caused by long-term start-up, and prolong the service life;
5、After the centrifugation, the centrifuge door lock can be set to open automatically, reducing the operation steps and facilitating the access to the sample;
6、The parts of the inner cavity that are in contact with the volatiles of the sample are all made of 304 stainless steel, which is anti-corrosion and durable;
7、The horizontal rotor can be mixed with a symmetrical error of 10g and a diagonal error of less than 200g;
8、Real-time speed and centrifugal force switching, centrifugal force can be directly set to start operation, and there is sound and indicator light prompt when failing;
9、It has the protection functions of door cover closing, wrong operation, overspeed, overtemperature, unbalance, etc., which is safe and reliable;
10、The lifting speed is fast and slow to prevent the sample from suspension, and the gradient centrifugation can be set to ensure the centrifugation effect.
11、Reserved upgrade ports, which can provide long-term performance optimization and upgrade services.
Parameters:

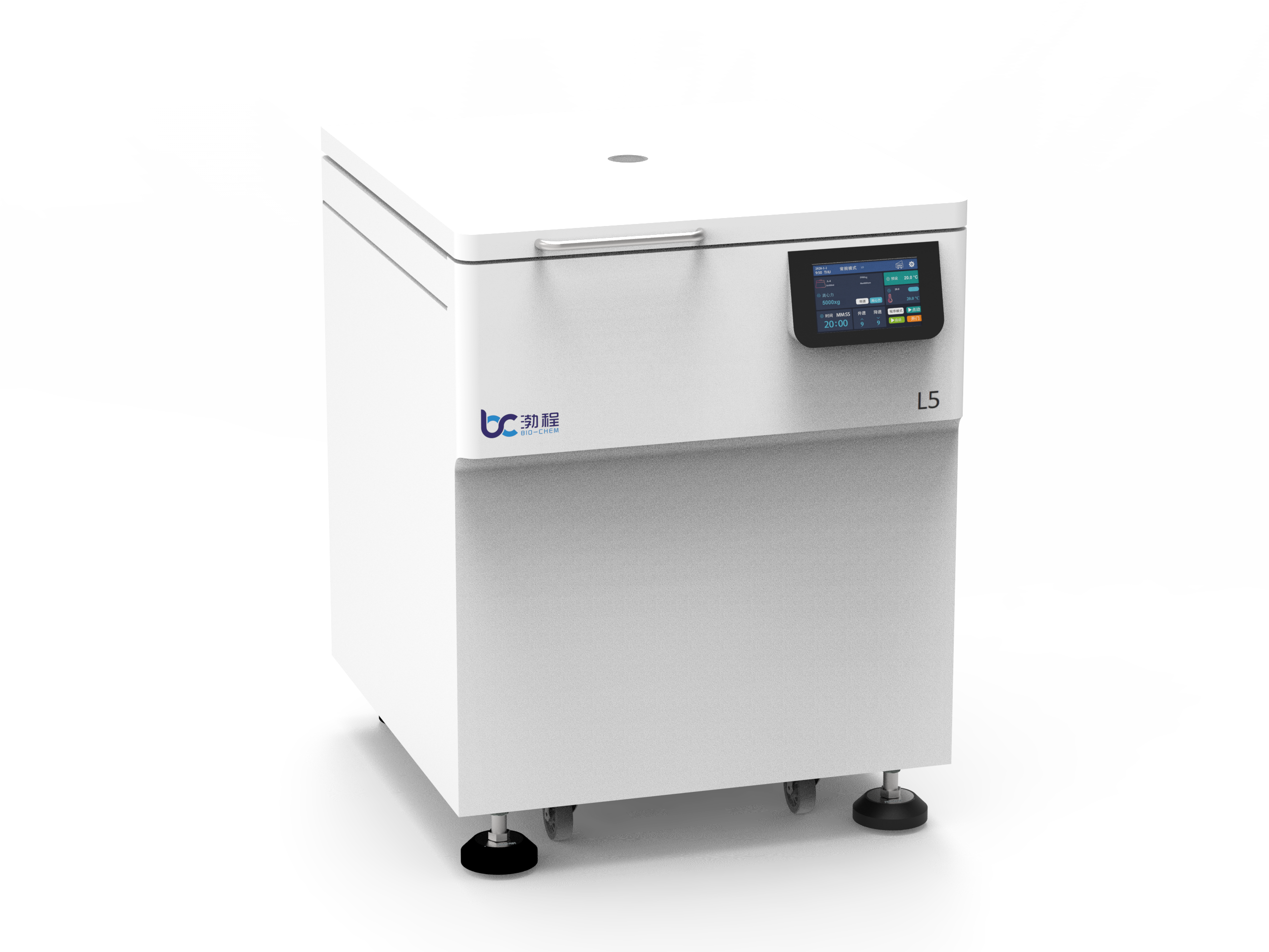

Model
L5
Max Capacity
4*1000ml(Horizontal Rotor)
Max Speed
5000rpm
Max RCF
6100Xg
Speed Accuracy
±10r/min
Time Setting
0-99min59s
Accel/Decel Setting
1-9
Noise
≤65dB(A)
Power Supply
AC 220V±22V 50HZ 30A
Consumption
3.5KW
Width(L*W*H)mm
669mm*590mm*1012mm
Weight(Without Rotor)
260kg

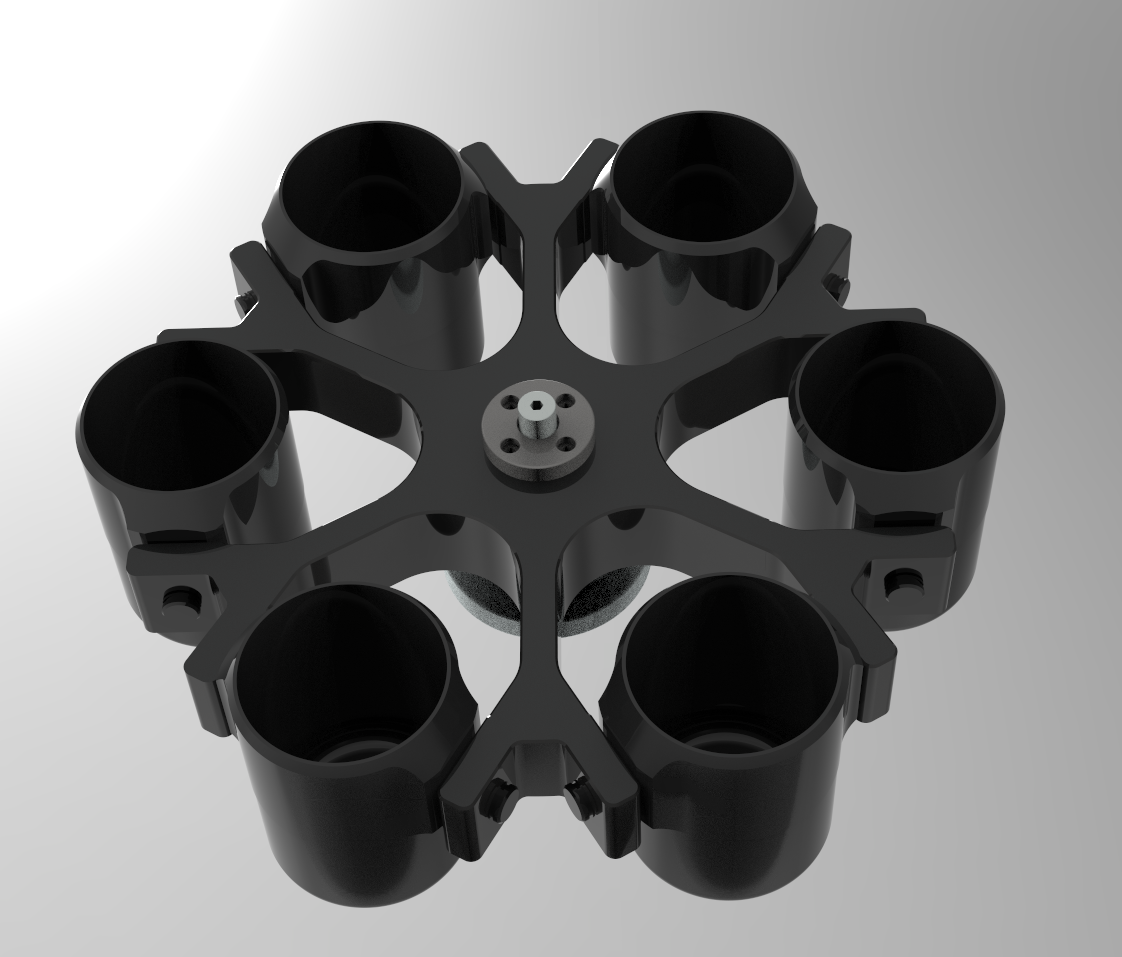

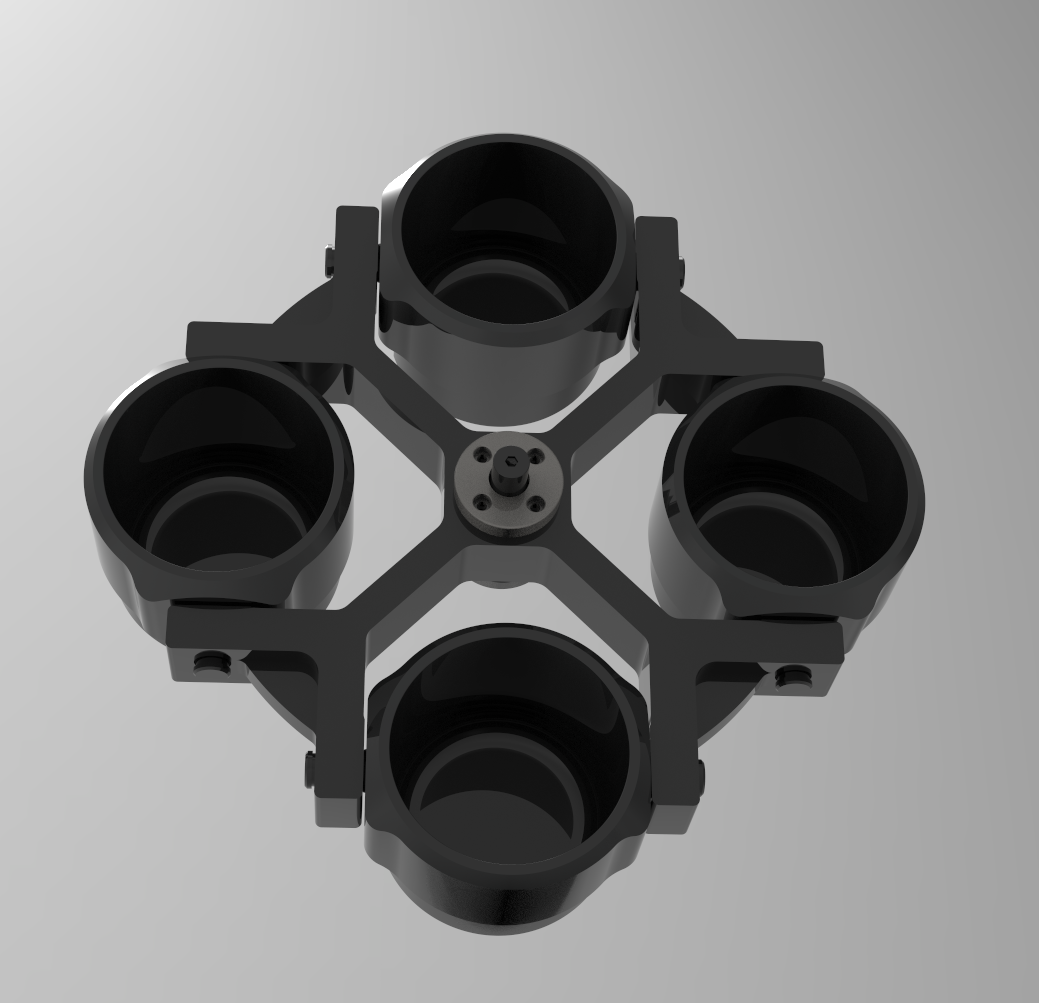

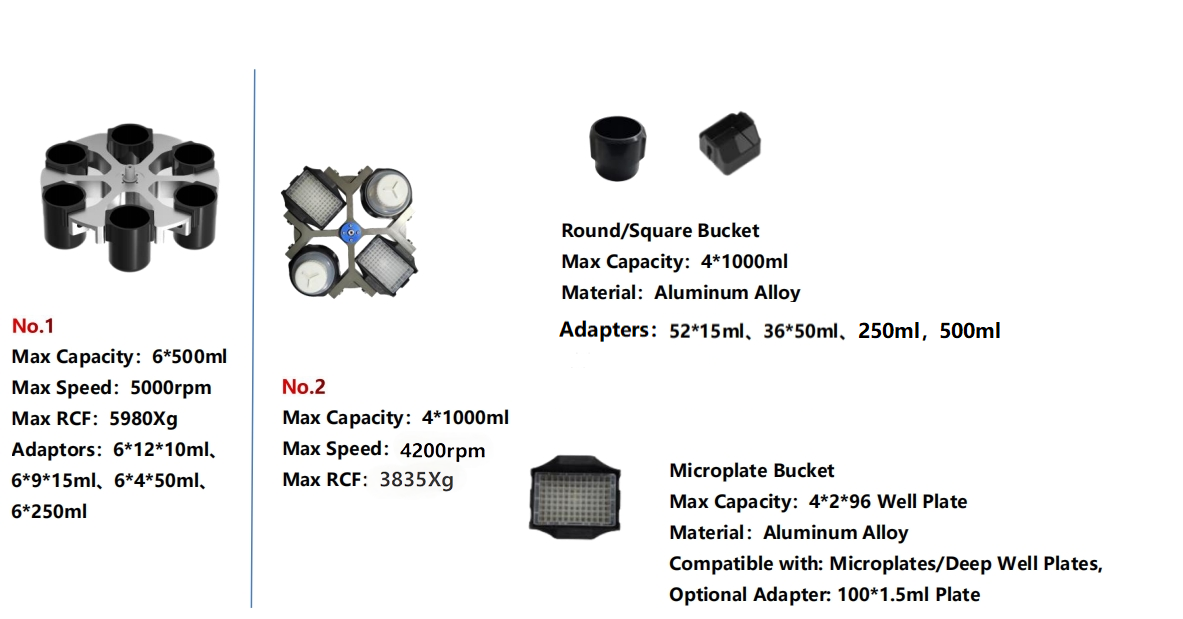

Rotors:
