Features:
1、LCD screen display with button operation. The user-friendly interface ensures simple and convenient operation.
2、Microcontroller-controlled with brushless motor drive, ensuring stable operation, low noise, high-speed precision, and no carbon dust pollution.
3、Post-centrifugation, the centrifuge door lock can be set to open automatically, reducing operational steps and facilitating sample access.
4、All parts of the inner chamber and air ducts that come into contact with sample volatiles are made of 304 stainless steel, ensuring corrosion resistance and durability.
5、The fixed-angle rotor's airtightness is achieved with silicone fluoroelastomer rings, and the rotor lid's quick open/close mechanism is a patented design, allowing for one-handed operation.
6、Independent exhaust duct; activated carbon sponge adsorption effectively purifies exhaust air and reduces noise.
7、Real-time RPM/RCF switching, enabling direct centrifugal force setting for operation, with sound and indicator prompts in case of faults.
8、Dual-locking function with both structural self-locking and motor self-locking, including door lock safety detection and reminders.
9、Includes protective functions for door closure, incorrect operation, overspeed, overtemperature, and imbalance, ensuring the safety of both the user and the machine.
10、Adjustable fast and slow speed ramping to prevent sample resuspension, guaranteeing optimal centrifugation results.
Parameters:

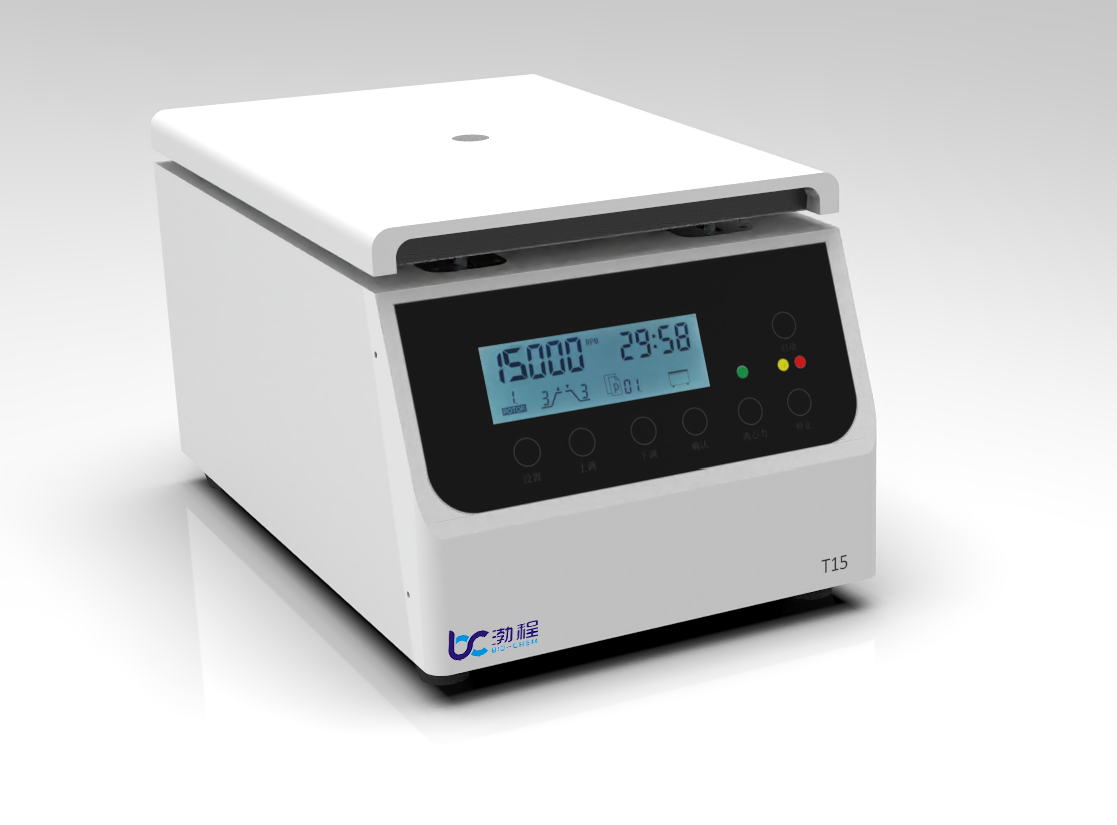

Model |
T15 |
Max Capacity |
12*5ml |
Max Speed |
16500rpm |
Max RCF |
22010Xg |
Speed Accuracy |
±10r/min |
Timer Range |
0-99min59s |
Accel/Decel Setting |
1-9 |
Noise |
≤62dB(A) |
Power Supply |
AC220 50Hz 10A |
Consumption |
500W |
Size(L*W*H)mm |
345*253*226 |
Weigh(without rotor) |
17kg |

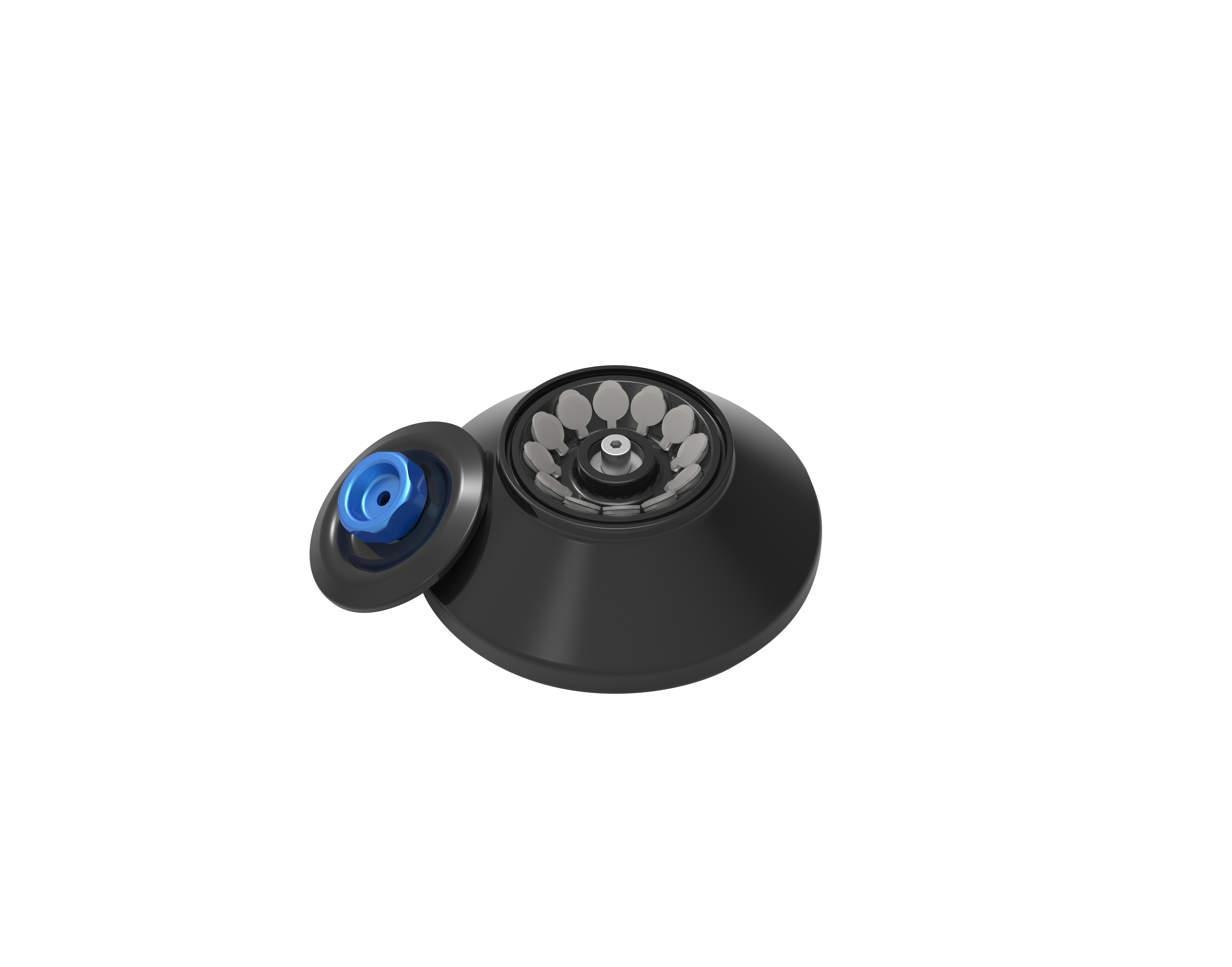

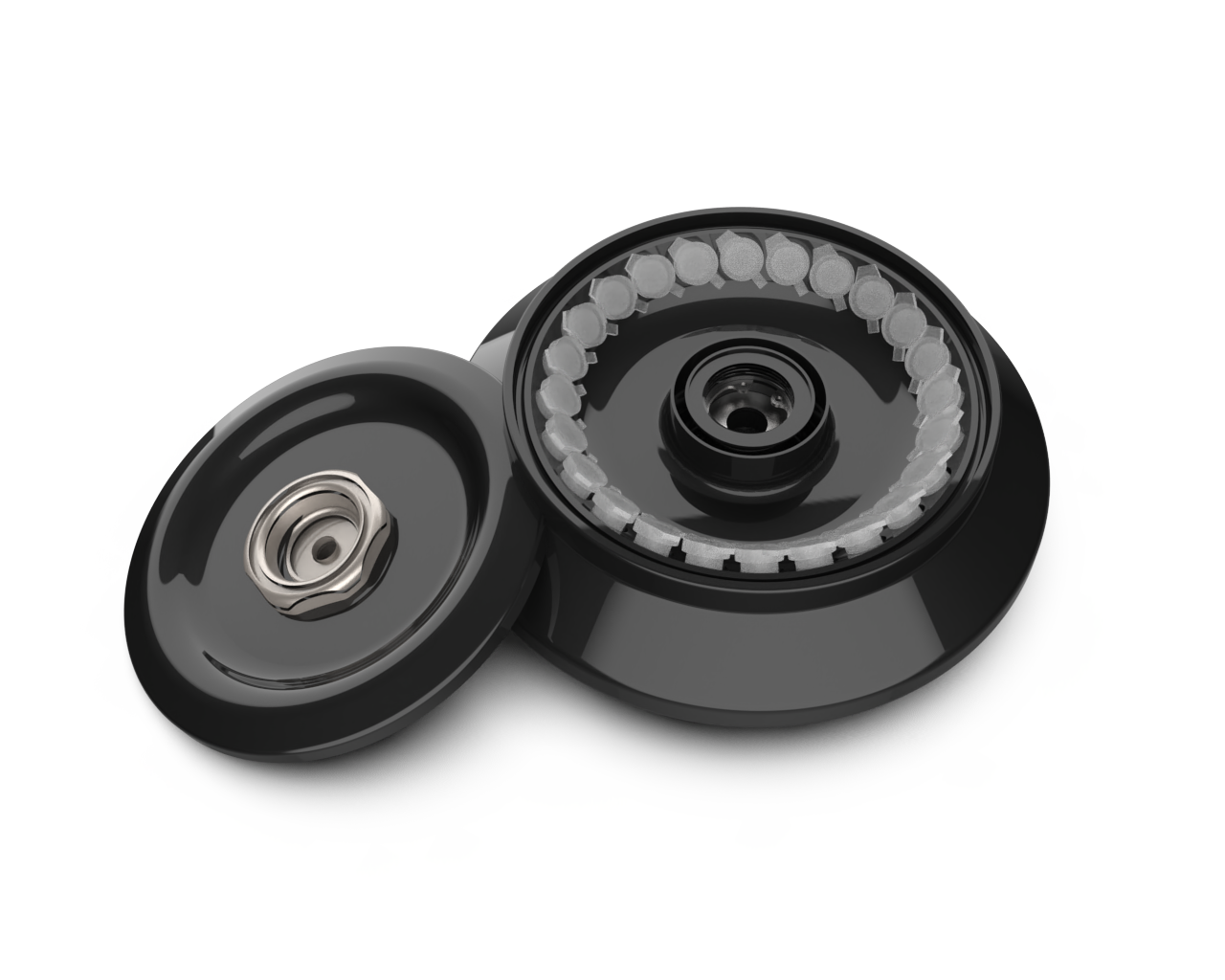

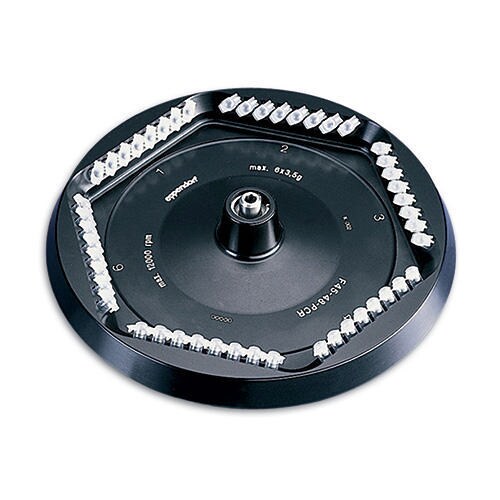

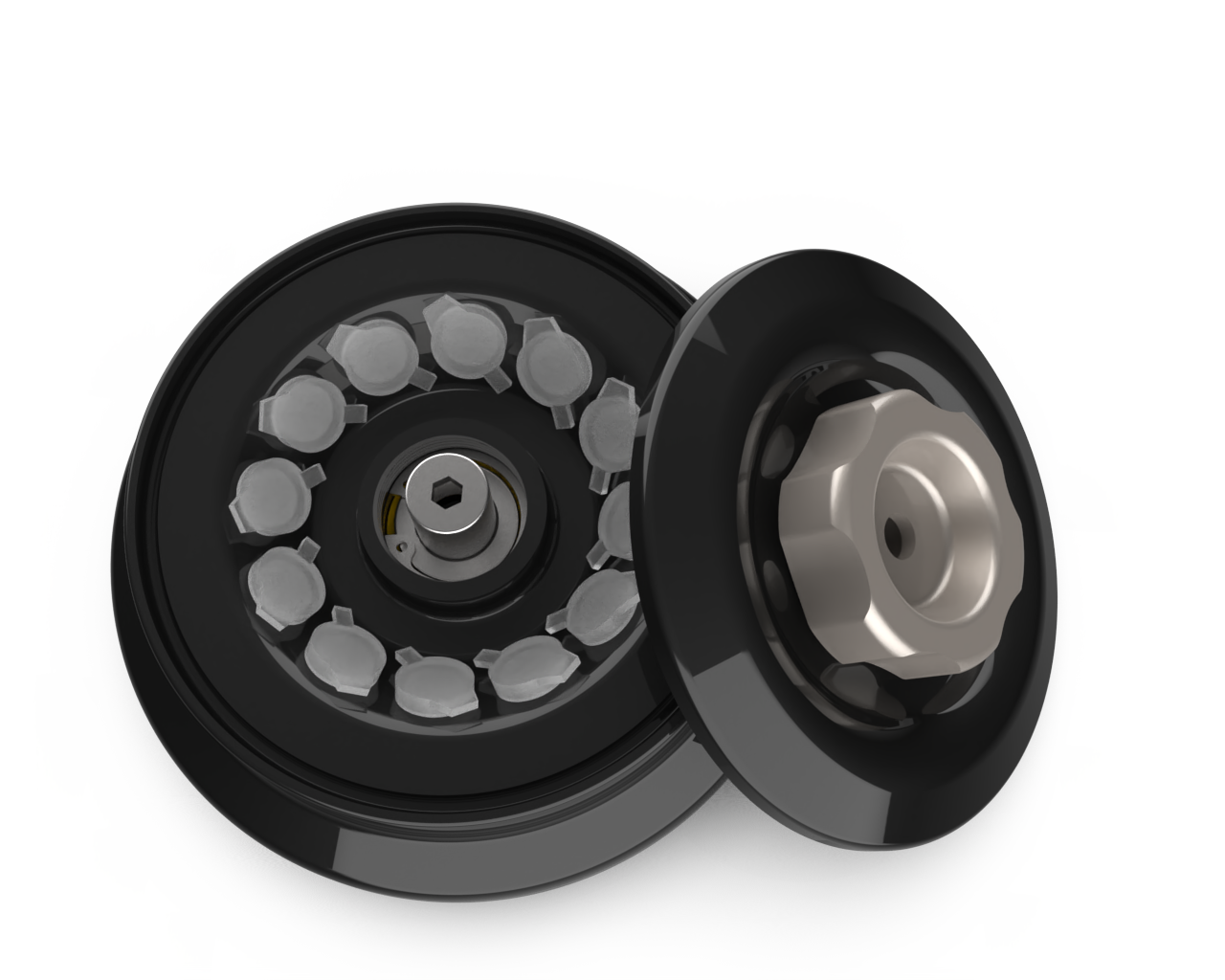

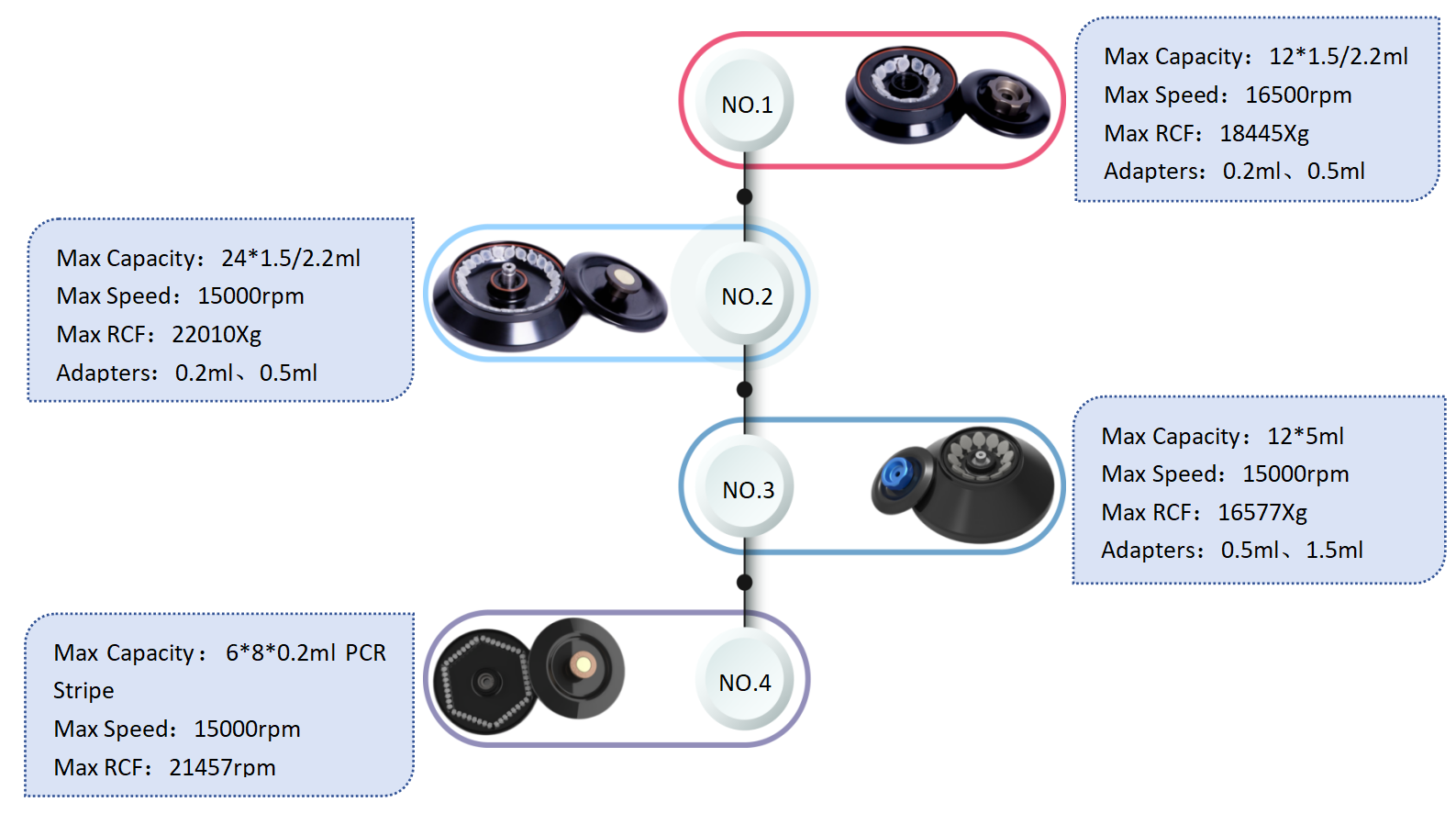

Rotors:
