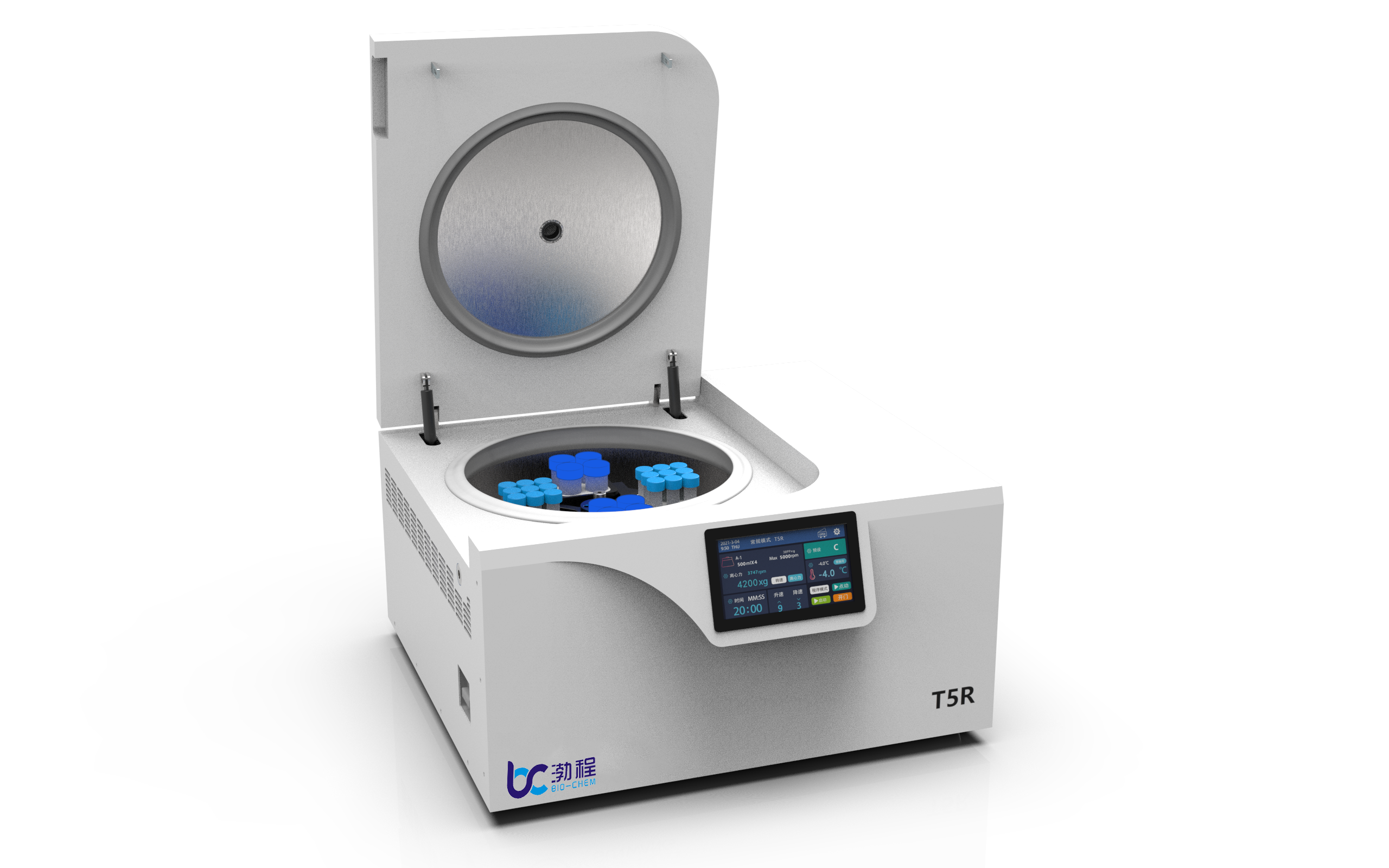

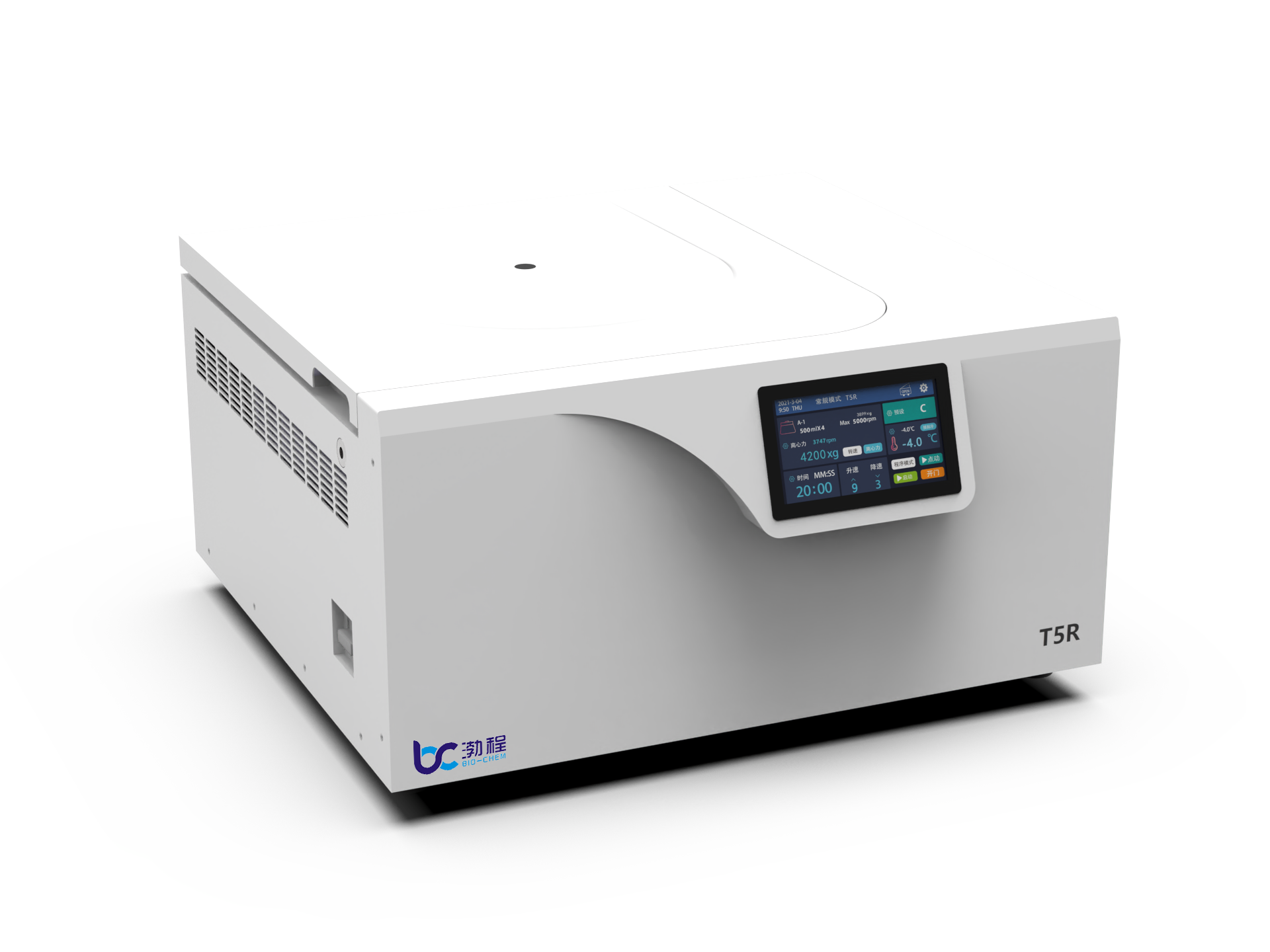

T5R Low-speed Refrigrated Centrifuge
The T5R low speed refrigrated centrifuge is a benchtop centrifuge with low-speed versatility and low-temperature constant-temperature refrigeration capabilities, designed for medium to high throughput. It is widely suitable for biological research, clinical testing, and specialized applications such as vacuum blood collection tube decapping, addressing the needs for large-capacity separation and purification of samples.
Product Details


Features:


1A colorful 7-inch high-sensitivity touch resistive screen that can be operated even with gloves on. The user-friendly interface ensures simple and convenient operation.

2Utilizes single-chip microcomputer control and brushless motor drive, ensuring stable operation, low noise, high-speed precision, and no carbon powder pollution.

3Features a dual-locking function with both structural self-locking and motor self-locking, including door lock safety detection and a cover-closed reminder on the interface.

4Incorporates an imported Tecumseh compressor and fluorine-free refrigerant, allowing for continuous cooling once powered on and the door is closed, ensuring a constant temperature.

5Capable of rapid pre-cooling, reducing temperature from room temperature (24℃) to 4℃ in just 5-7 minutes.

6Includes a patented motor design to prevent condensation, which protects against bearing corrosion due to prolonged operation and extends the service life.

6Post-centrifugation, the centrifuge door lock can be set to open automatically, reducing operational steps and facilitating sample access.

7All parts of the inner chamber that come into contact with sample volatiles are made of 304 stainless steel, ensuring corrosion resistance and durability.

8Offers real-time speed and centrifugal force switching, enabling direct centrifugal force setting for operation, with sound and indicator prompts in case of faults.

9Includes protective functions for door closure, incorrect operation, overspeed, overtemperature, and imbalance, ensuring safety and reliability.

10Adjustable fast and slow speed ramping to prevent sample resuspension, with settable gradient centrifugation to guarantee optimal separation.

11The horizontal rotor allows for a symmetrical error of 10g and a diagonal error of less than 200g during mixed loading.

12Comes with an upgrade port reserved for long-term performance optimization and upgrade services.


Parameters:


Model

T5R

Max Capacity

4*500ml

Max Speed

6000rpm

Max RCF

5353Xg

Temprature Setting

-20℃至40

Temprature Accuracy

±1

Speed Accuracy

±10r/min

Time Setting

0-99min59s

Accel/Decel Setting

0-9

Noise

58dBA

Power Supply

AC220 50Hz 10A

Comsuption

1300W

SizeL*W*Hmm

586*640*328

WeighWithout Rotor

75kg

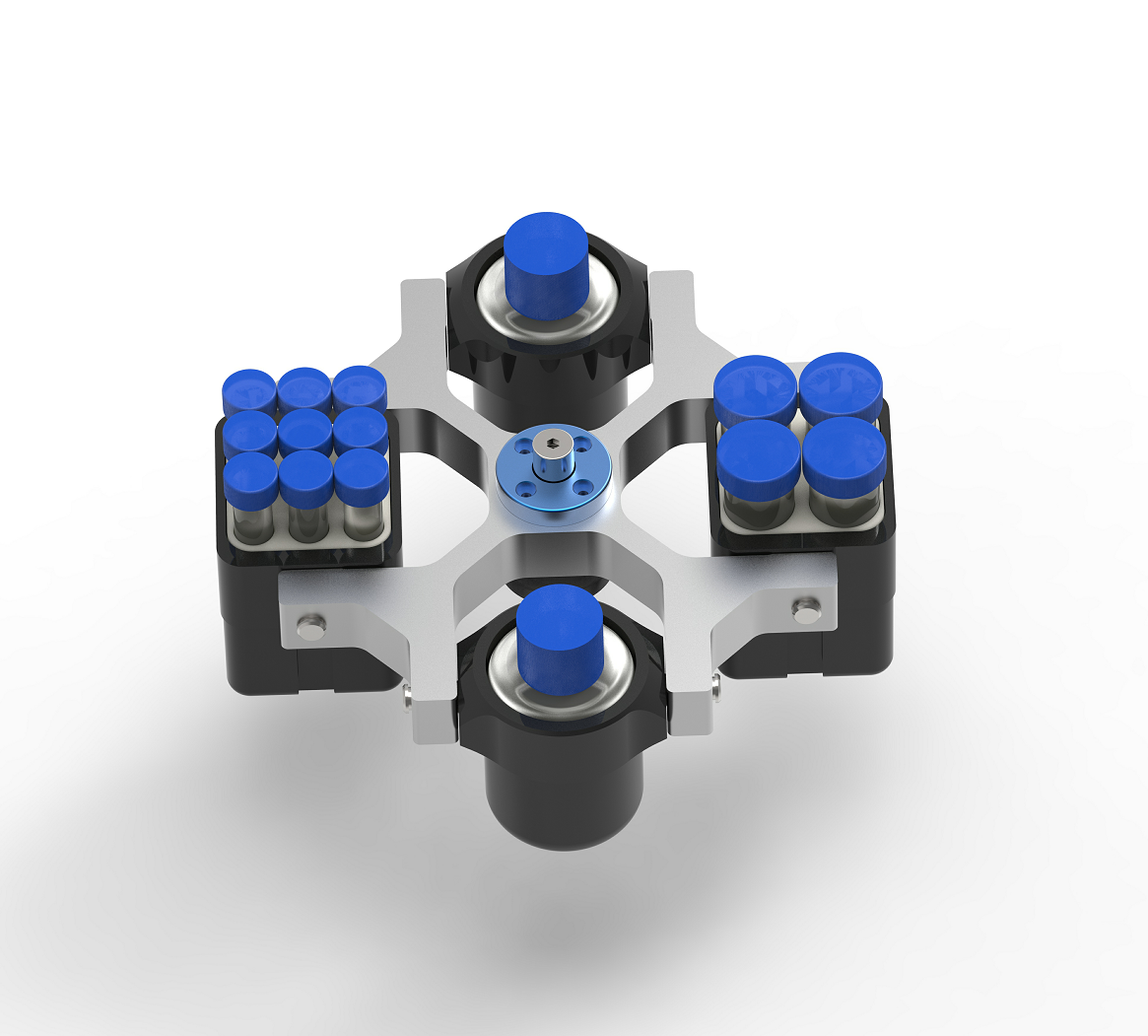

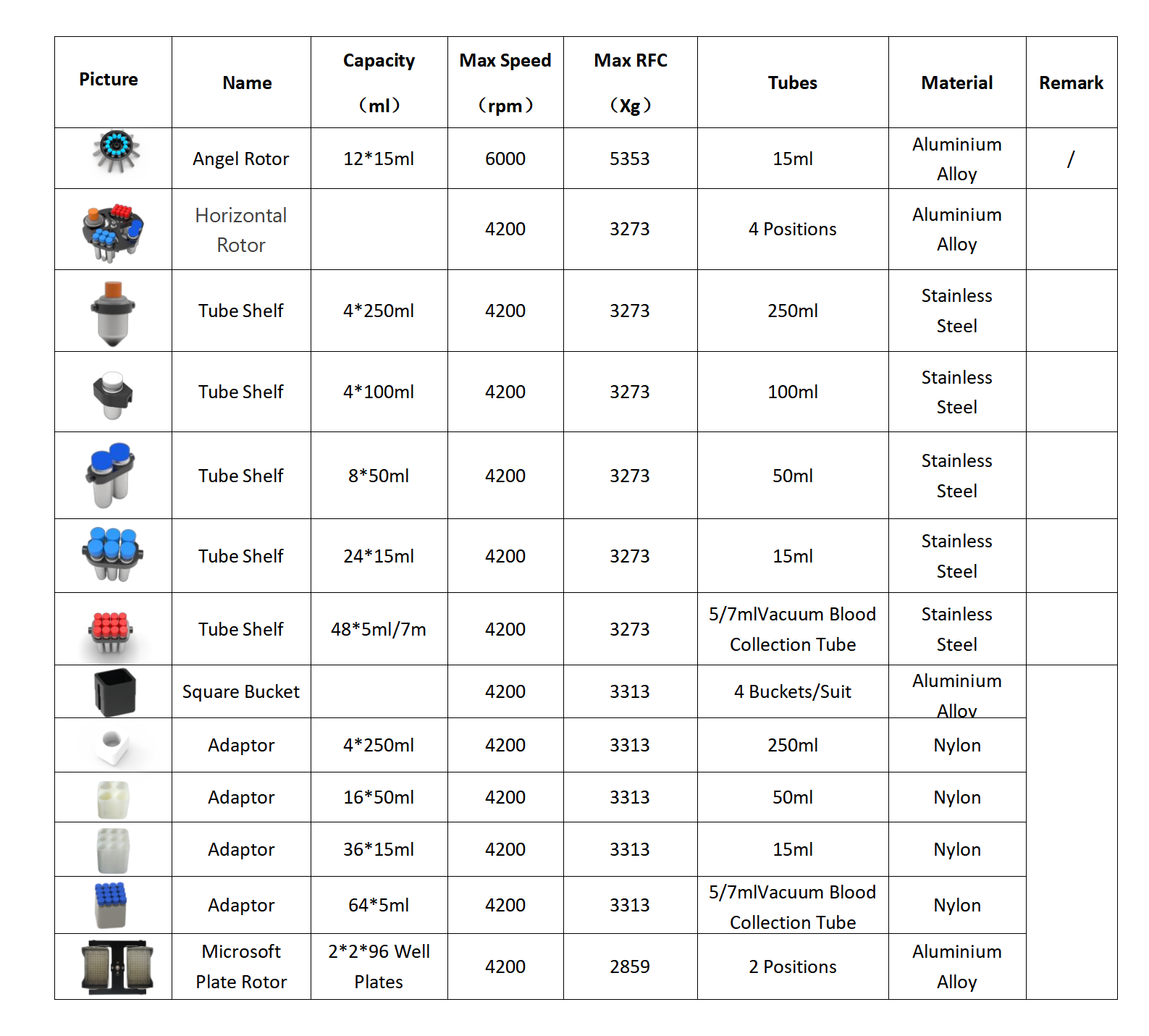

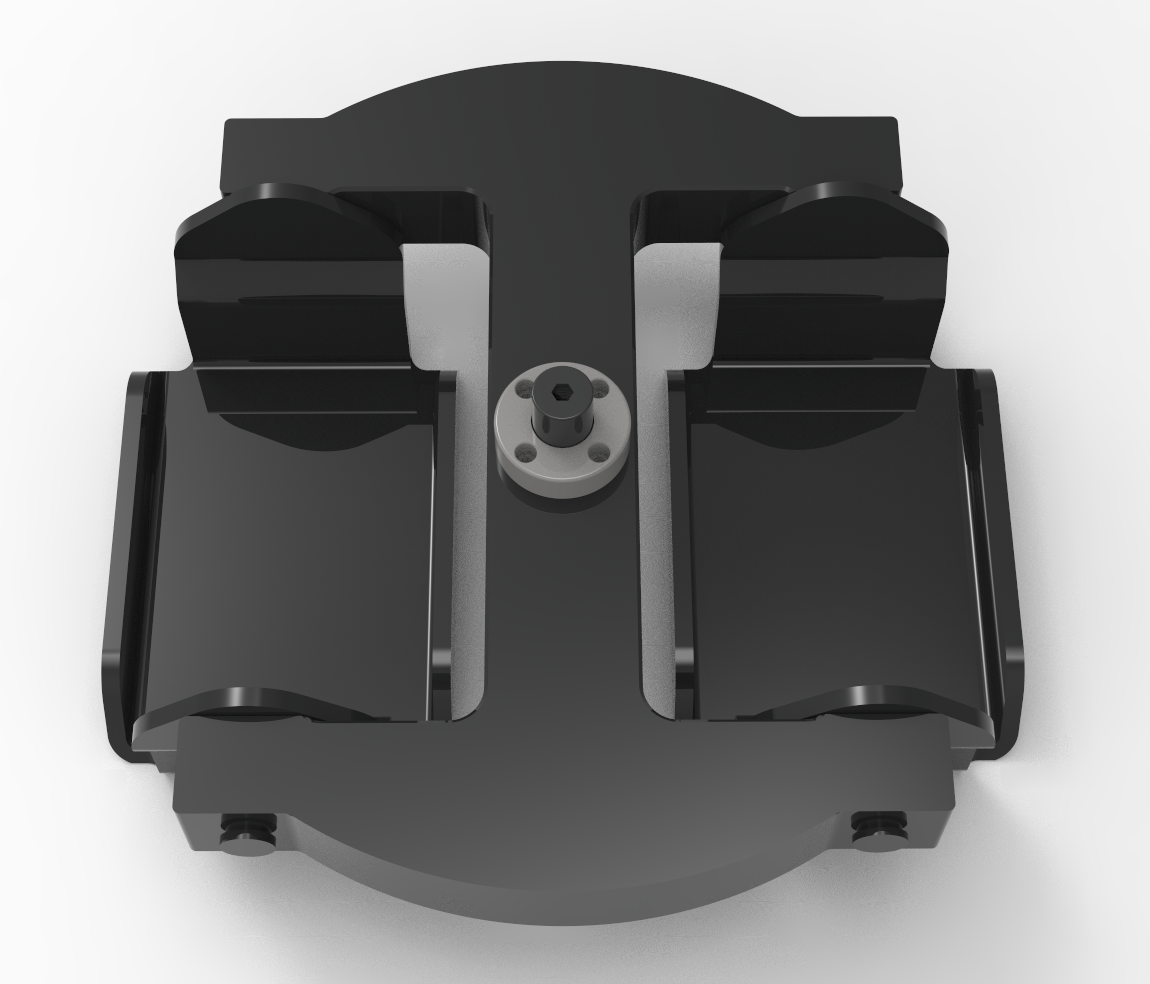

Rotors:


Adapters can be customized according to customer requirements
