Cell smear centrifuge
Cell smear centrifuge is used to process various clinical body fluids and cell suspensions. Through centrifugation, cells are separated from the liquid, and the cells are collected and smeared onto slides for subsequent staining and microscopic examination. Sunhope cell smear machine is widely applied in fields such as medicine, pharmacy, and biology. It is mainly used for cytological diagnosis and related research. It can conveniently and efficiently process various clinical body fluids, such as serous cavity effusion, cerebrospinal fluid, vitreous humor, joint cavity effusion, bronchoalveolar lavage fluid, urine, etc., to obtain high-quality cell smears. Then, through staining and microscopic examination, cytomorphological examination and cancer screening can be achieved. This has important clinical significance for disease diagnosis and efficacy evaluation, providing strong support for the timely diagnosis and treatment of diseases.
Product Details

Features:


1、The core components of the instrument are mostly independently developed, with multiple original patent designs.

2、It is driven by a DC brushless motor, ensuring quiet and stable operation.

3、The chamber is integrally formed, which is aesthetically pleasing and easy to clan.

4、Equipped with a 7-inch intelligent touch large screen, it offers easy operation.

5、The door lock uses a worm gear motor, featuring safe self - locking and automatic door suction when closed.

6、It has a dynamic imbalance protection function and will automatically stop in case of malfunctions.

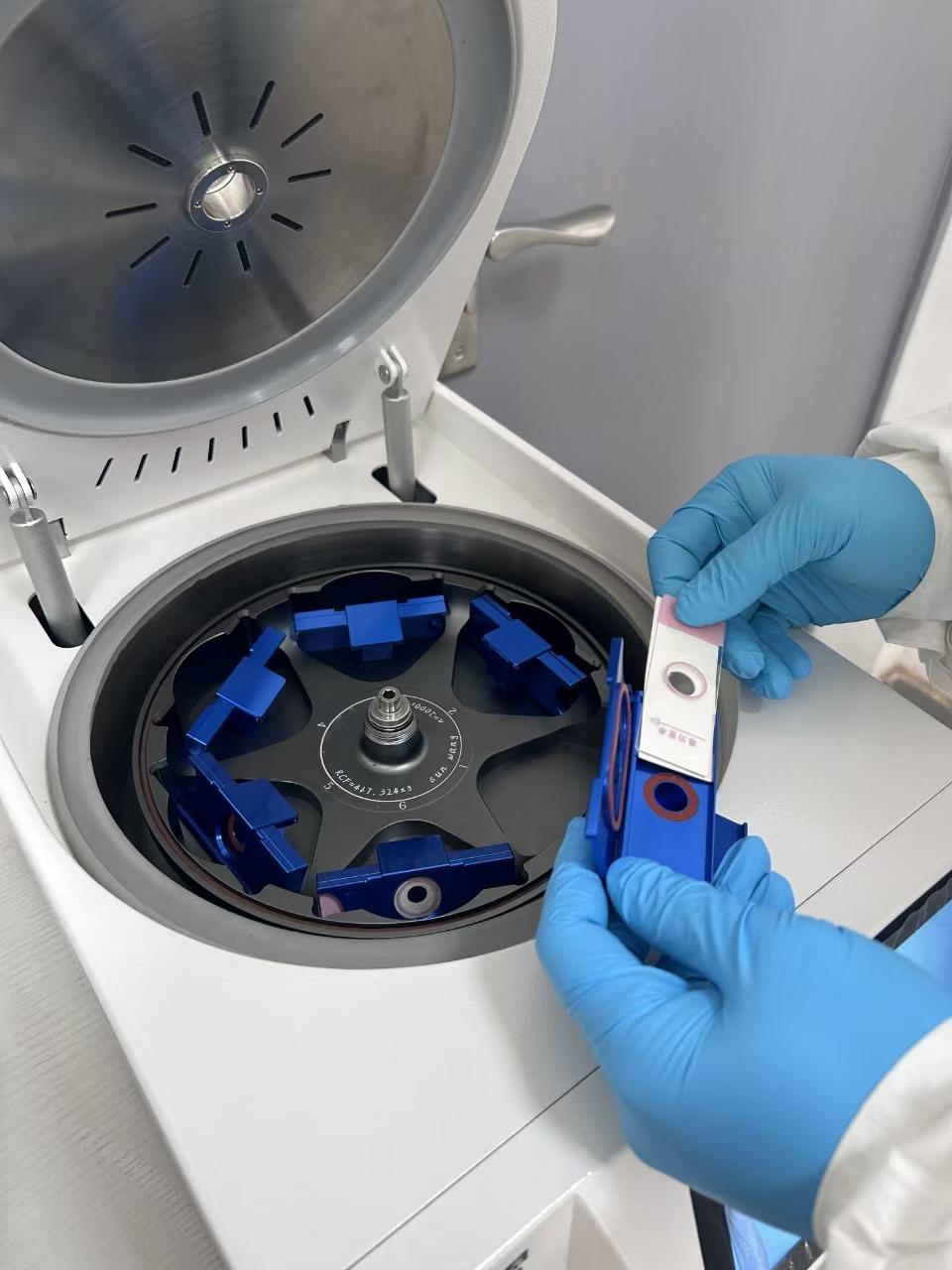

7、The rotor and sample holder are precisely processed from aviation aluminum, with an anodized surface, which is beautiful and durable.

8、It is applicable to all liquid - based samples, boasting a high cell collection rate and intact cell morphology.

9、Specifically for cerebrospinal fluid with a low cell content, a cerebrospinal fluid sample holder set has been designed.


Parameters:



Model

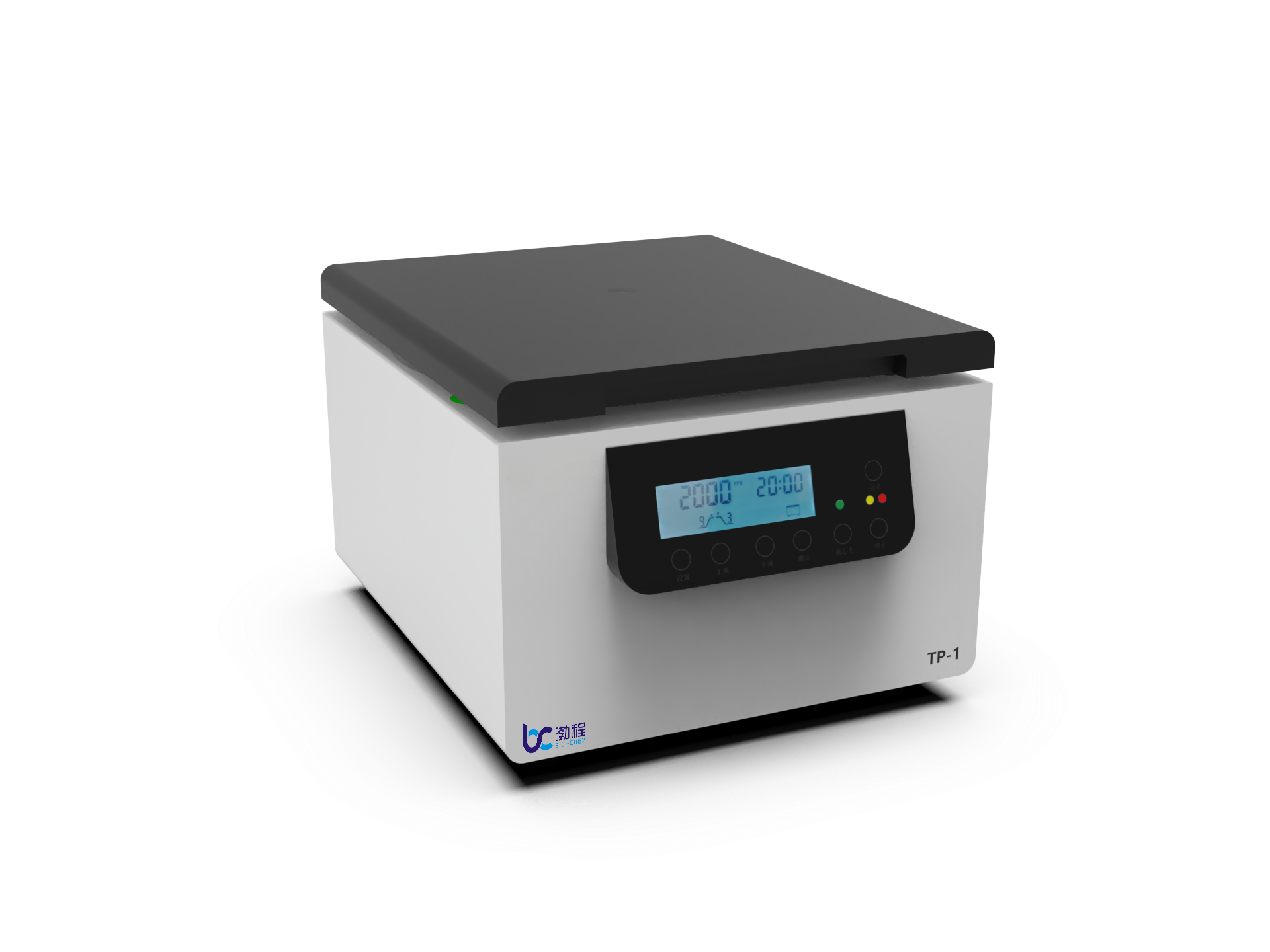

TP-1

TP-2

Max Capacity

4 positon 8 specimens

6 positon 12 specimens

Max  Speed

2000rpm

2000rpm

Max RCF

448xg

448xg

Time Setting

0-99min59s

0-99min59s

Noise

≤65dB(A)

≤65dB(A)

Temperature Range

Room Temp+10℃

Room Temp+10℃

Ambient Temperature

5℃~30℃

5℃~30℃

Power Supply

AC220V 50Hz 5A

AC220V 50Hz 5A

Power Consumption

300W

300W

Net Weight

19kg

19KG

Packing Size

425*300*210mm

410*340*260mm

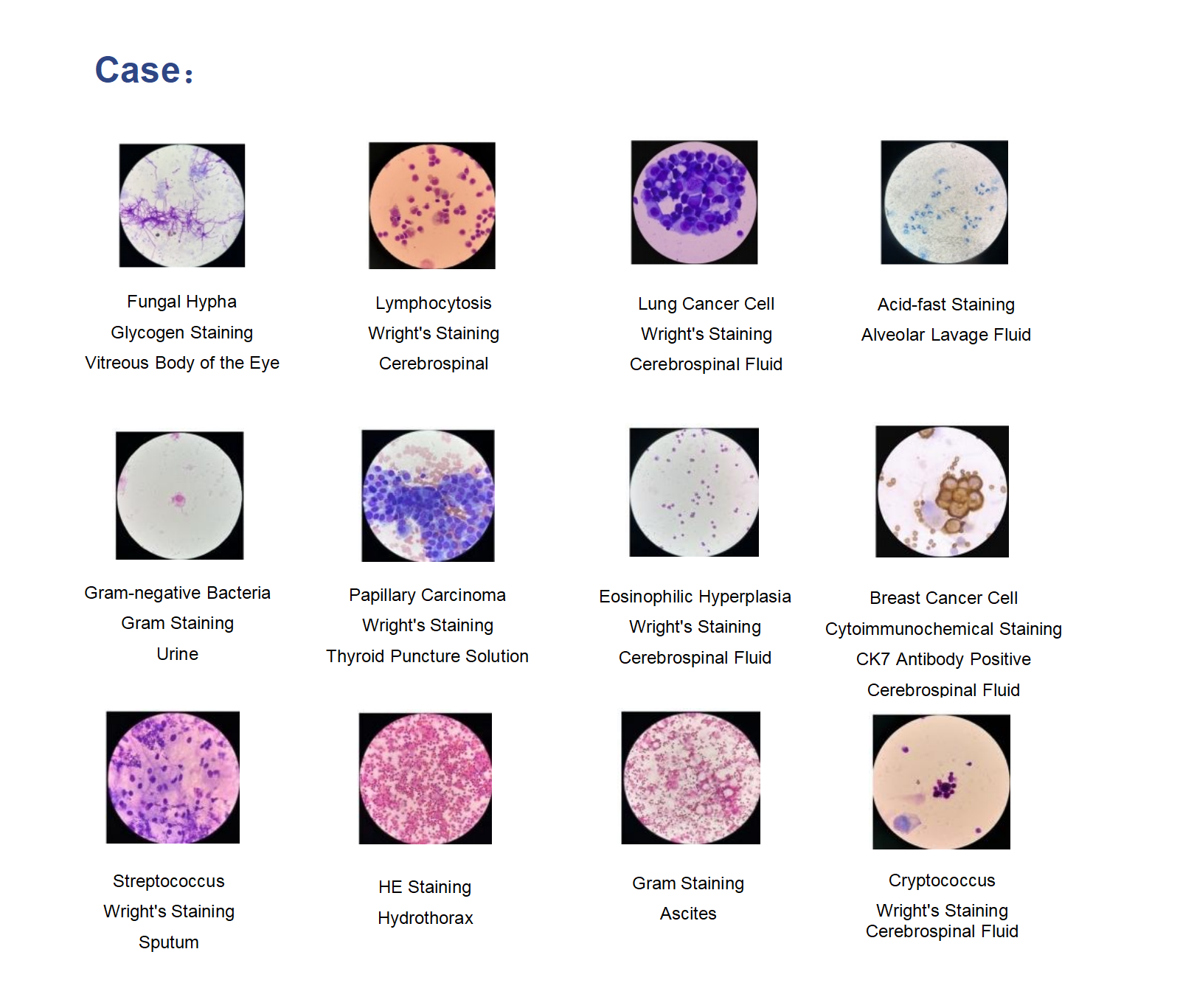

Case:
