Features：
1、Dual-Drive System
The centrifuge employs a dual-drive mechanism, effectively addressing the issue of speed drop under load conditions commonly seen in servo motors. This ensures stable and consistent performance even during high-load operations.
2、7-Inch Touchscreen Display
Equipped with a large 7-inch touchscreen for intuitive and user-friendly operation. The interface allows seamless switching between manual touch control and PC-based control, providing flexibility in operation.
3、Fully Automatic Hidden Sliding Door
Features a custom-sized, fully automatic sliding door driven by a worm gear motor, which offers strong self-locking capabilities. The hidden design ensures a sleek and space-saving appearance.
4、Basket Alignment with Automatic Door
The basket is designed to align with the automatic door, with a 15mm clearance on one side for easy access and handling. It includes both horizontal and vertical limiters to ensure precise positioning and safety.
5、304 Stainless Steel Construction
The inner chamber and all moving joints are made of 304 stainless steel, providing excellent rust resistance and corrosion durability, making it suitable for demanding environments.
6、Rotor Made of Aviation-Grade Aluminum Alloy
The rotor is constructed from 7-series aviation aluminum alloy and undergoes hard anodizing treatment, ensuring high strength, durability, and corrosion resistance.
7、Laser-Based Non-Contact Position Calibration
Position calibration and origin detection are achieved using a non-contact laser sensor, ensuring accurate and reliable position readings without physical wear.
8、RS485 Communication Port with MODBUS Protocol
The centrifuge includes an open RS485 communication port and supports the MODBUS protocol, enabling easy integration with external systems for data exchange and control.
9、USB Communication Port for Upgrades
Rreserved USB port for future use, allowing for software updates, optimization, and additional functionality upgrades.
Product model :
|
Model |

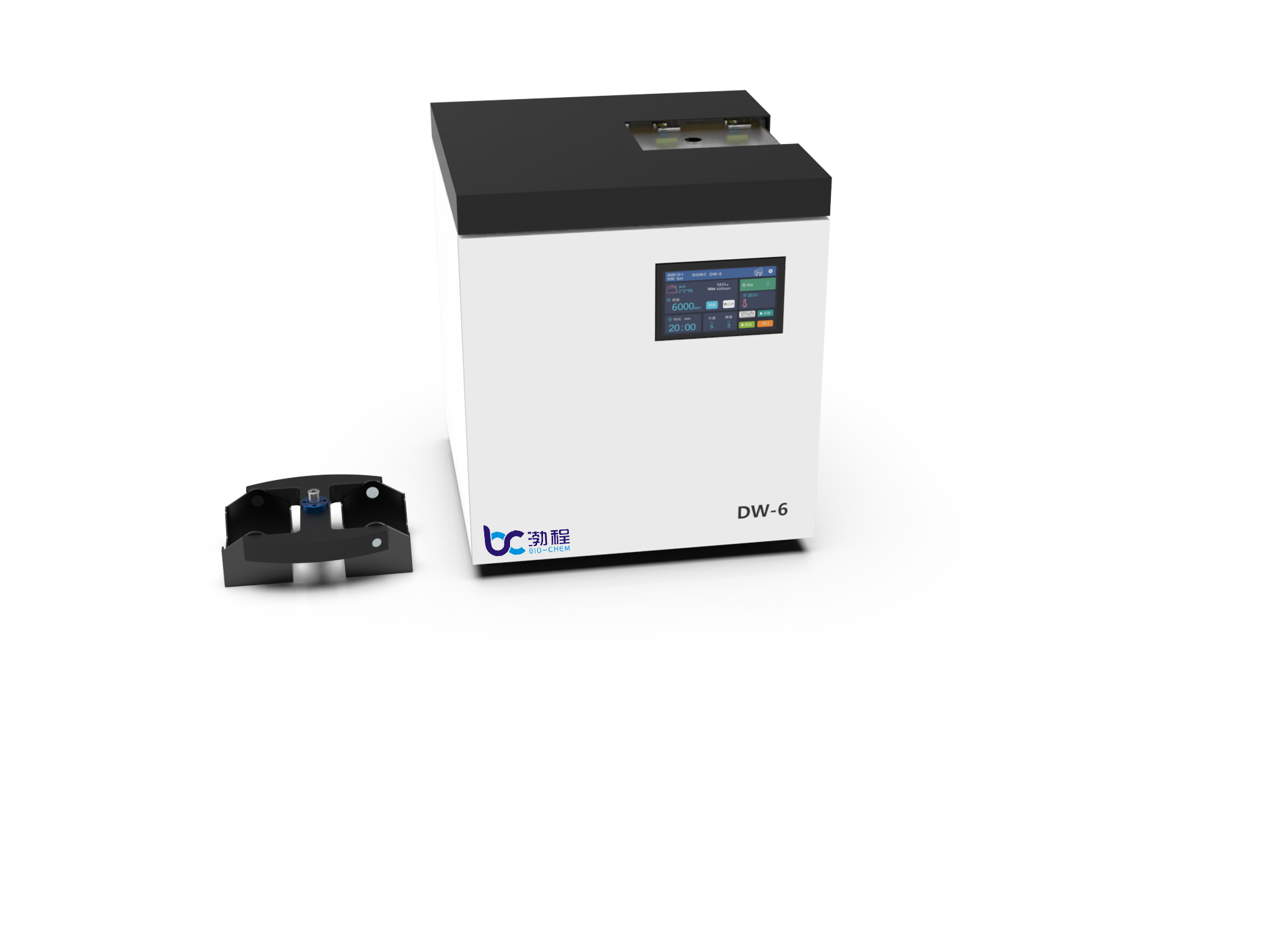

DW-6 |
DW-6R |
DW-12 |

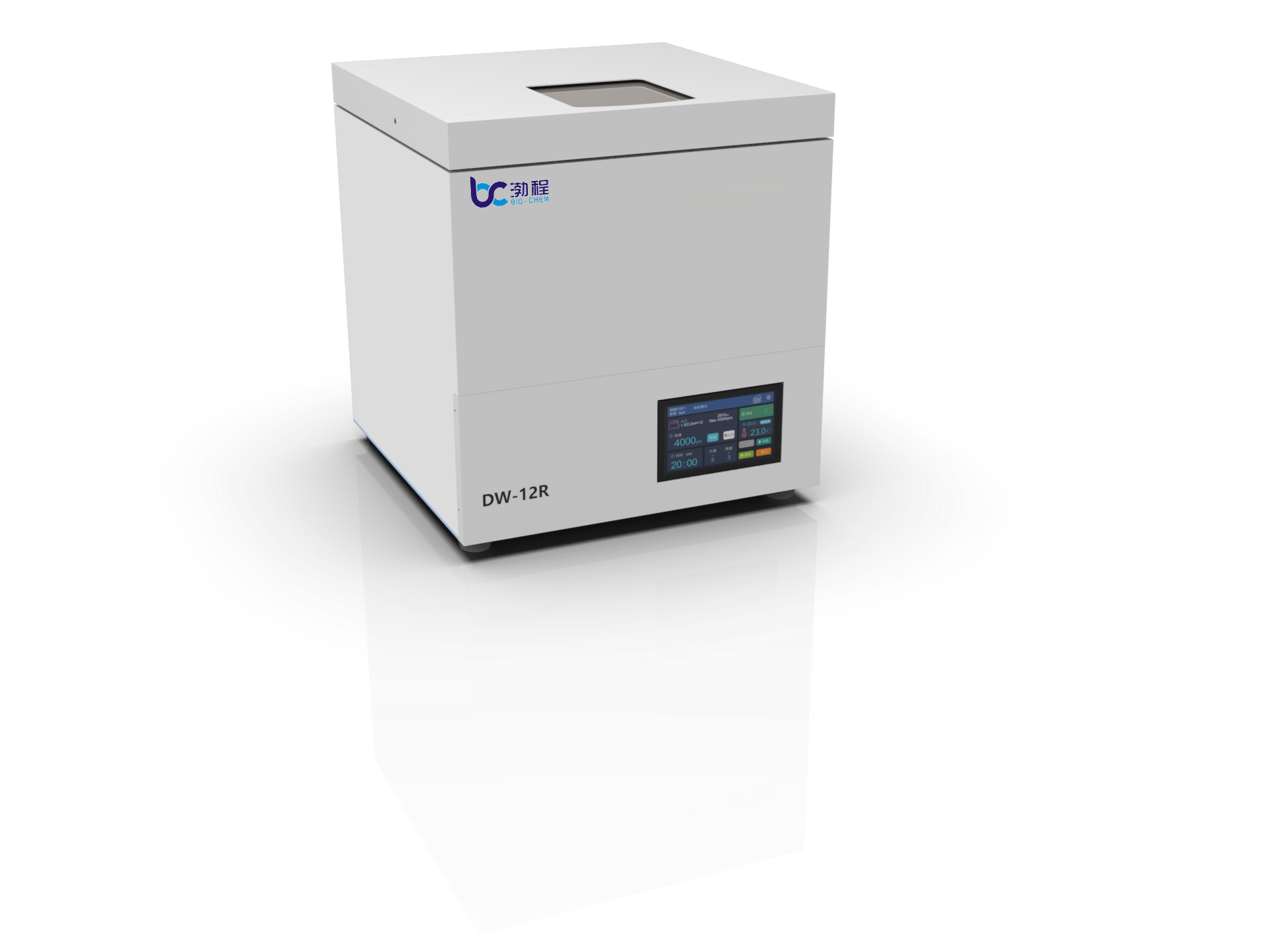

DW-12R |
DW-15 |

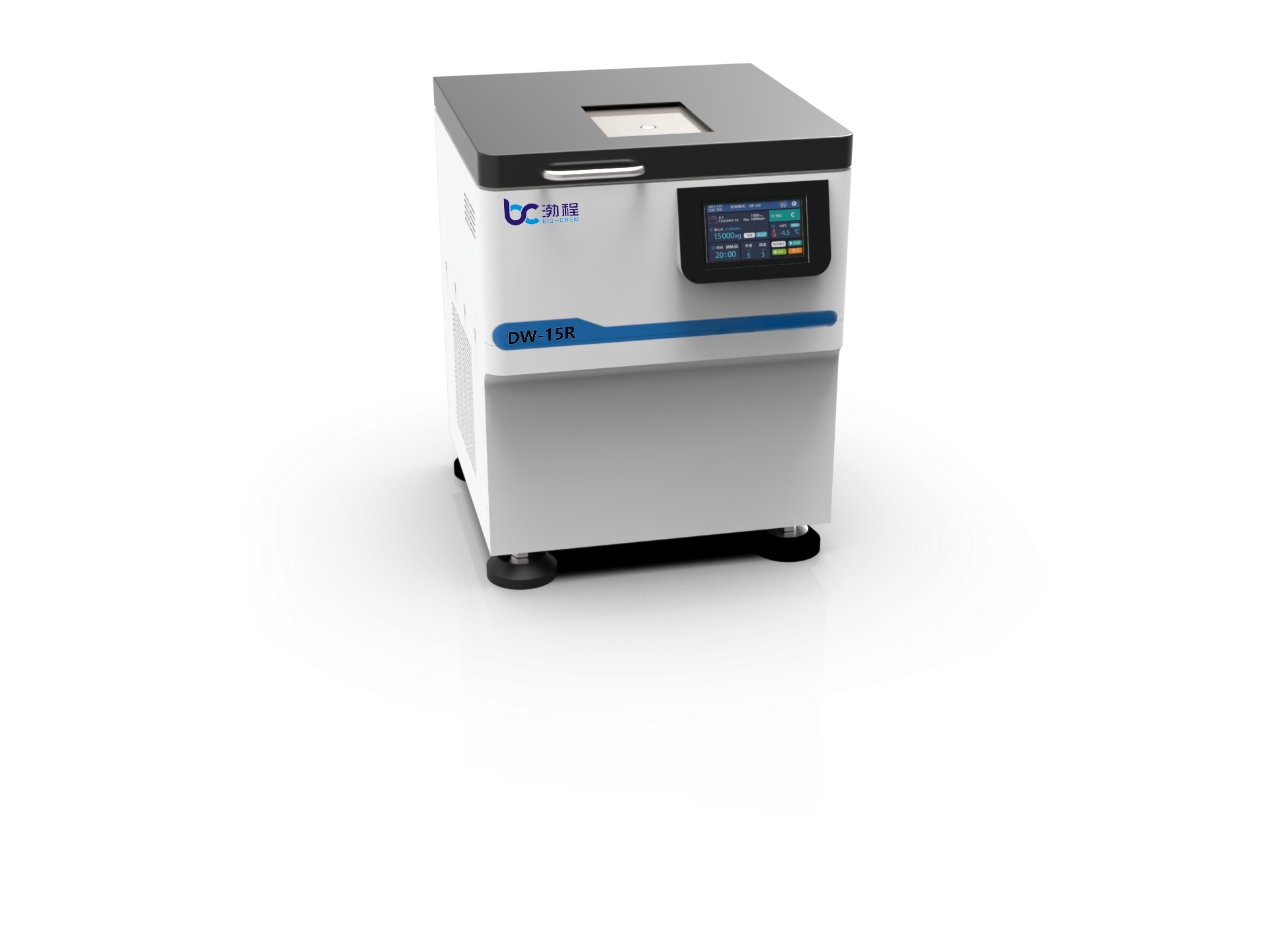

DW-15R |
|
Max Speed |
6000 |
12000 |
15000 |
|||
|
Max RCF |
3823Xg |
15294Xg |
24500Xg |
|||
|
Max CapaCity |
4*750ml（Sizes below 750ml are customizable. Standard 96-well plates and deep-well plates are available for selection.） |
12*10ml（Specialized for small-capacity angel rotors） |
4 Positions/ 16 Deepwell Plates
|
|||
|
Max Speed and Rotor Capacity |
12*10ml Angel Rotor |
12*10ml Angel Rotor |
6*50ml Angel Rotor |
|||
|
Size(L*W*H)mm |
470*480*535 |
550*570*585 |
420*420*535 |
420*420*535 |
590*640*750 |
590*640*750 |
|
Weigh(Kg) |
55kg |
82kg |
40kg |
55kg |
120kg |
150kg |
|
Comsuption |
800W |
1000W |
600W |
800W |
1600W |
1800W |
|
Temprature Range |
RT+10℃ |
-9-40℃ |
RT+10℃ |
-9-40℃ |
RT+10℃ |
-9-40℃ |
|
Rotor Capacity Balance Requirements |
1、Fixed-Angle Rotor（≤ 2 grams） 2、Swing-Out (Horizontal) Rotor（≤ 5 grams） 3、Cross-Balance Difference: （≤ 200 grams） |
|||||
|
Noise |
≤65dB（A） |
|||||
|
Power Supply |
AC220V/50Hz /10A |
AC220V/50Hz /10A |
AC220V/50Hz /20A |
|||
Remark：
1、Fixed-Angle Rotor
Symmetrical Capacity Difference: ≤ 2 grams
For fixed-angle rotors, the weight difference between symmetrically positioned tubes must not exceed 2 grams. This ensures smooth operation and prevents excessive vibration or imbalance during high-speed centrifugation.
2、Swing-Out (Horizontal) Rotor
Symmetrical Capacity Difference: ≤ 5 grams
For swing-out rotors, the weight difference between symmetrically positioned buckets or tubes must not exceed 5 grams.
3、Cross-Balance Difference: ≤ 200 grams
The total weight difference between opposing buckets or tubes must not exceed 200 grams. This ensures proper balance across the rotor.
4、Customized requirements
The parameters and models of the automated centrifuge can be customized according to customer demands, meeting the needs of more scenarios.
