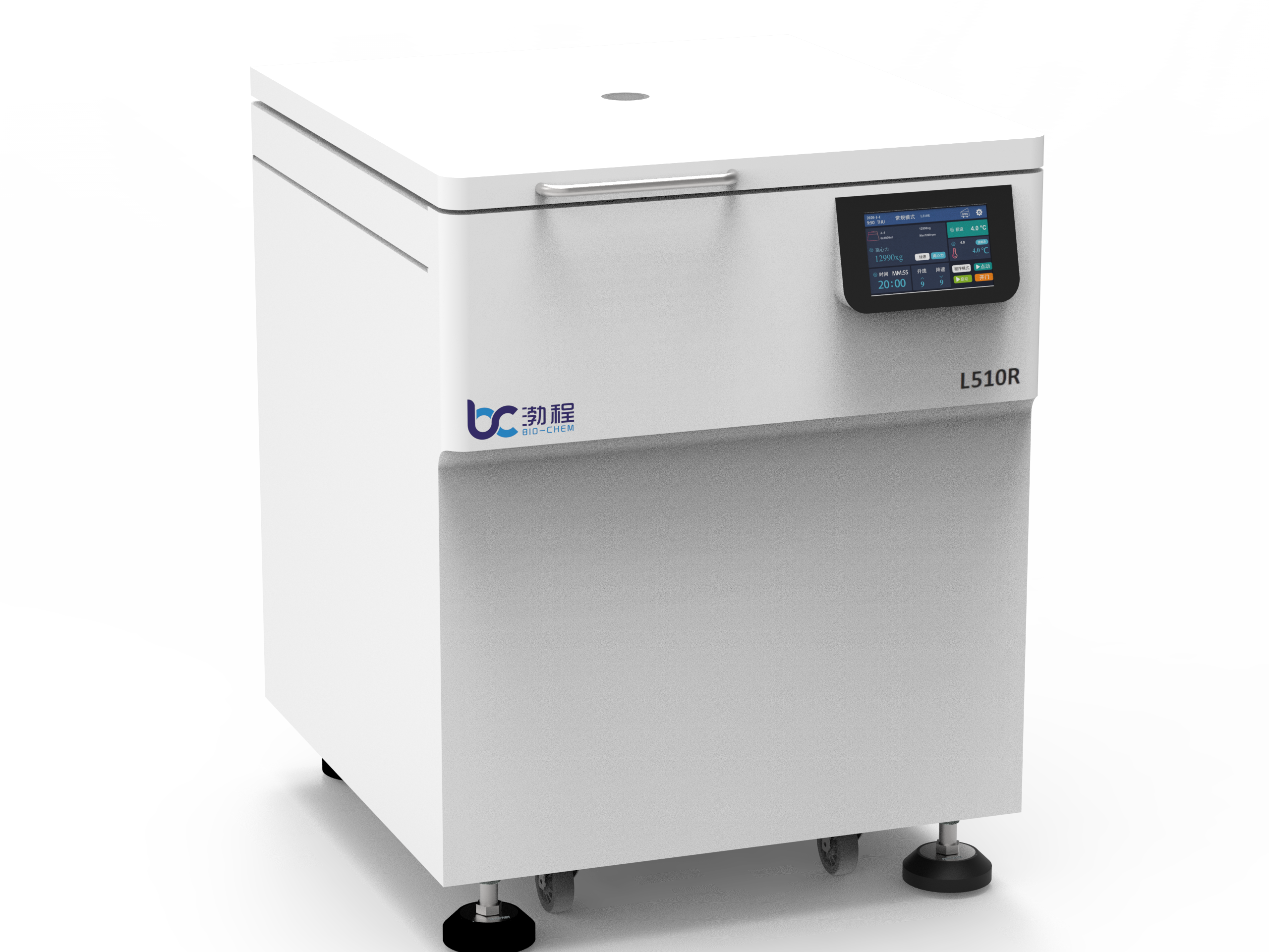

L510R Floor-Standing Refrigerated Centrifuge
The L510R High-Capacity Refrigerated Centrifuge is specifically designed for customers with high and low-speed requirements and can be widely applied in fields such as biopharmaceuticals, genetic engineering, biopharmaceuticals, and clinical medicine.
Product Details

Feature:


1、Microcomputer-controlled with programmable settings that can be stored and directly invoked.

2、Driven by an AC variable frequency motor, it offers high-speed precision, low noise, and smooth operation.

3、The centrifugation chamber and all parts in contact with sample volatiles are constructed from high-quality stainless steel 304.

4、Features a 7-inch large touch screen display with one-touch automatic door opening and closing control, making operation more effortless.

5、Equipped with an intelligent door lock that automatically engages, providing dual protection with electronic and structural locking for ease of operation, quietness, and security.

6、Dynamic imbalance protection that can force a stop at any time to ensure the safety of the operator and the samples.

7、Rotors and sample holders are precision-machined from high-quality aluminum alloy with anodized surfaces for corrosion resistance and durability.

8、Adjustable acceleration and deceleration times, with fast, medium, and slow ramp-up/ramp-down settings from 1-9 to suit experimental needs.

9、Intelligent rotor recognition that automatically adjusts parameters to ensure the safety of both the user and the machine.

10、Utilizes an imported compressor for refrigeration, ensuring stable operation and accurate temperature control.


Parameters:


Model

L510R

Max Capacity

6*2400ml(Horizontal Rotor)

Max Speed

10000rpm

Max RCF

17700Xg

Temperature Setting

-20℃-40℃

Temperature Accuracy

±1℃

Speed Accuracy

±10r/min

Time Setting

0-99min59s

Accel/Decel Setting

1-9

Noise

≤65dB(A)

Power Supply

AC 220V±22V 50HZ 30A

Consumption

6KW

Drive Motor

AC Variable Frequency Motor

Inner Chamber Diameter

Φ700mm

Size(L*W*H)mm

590*710*1020

Weigh(Kg)

220Kg

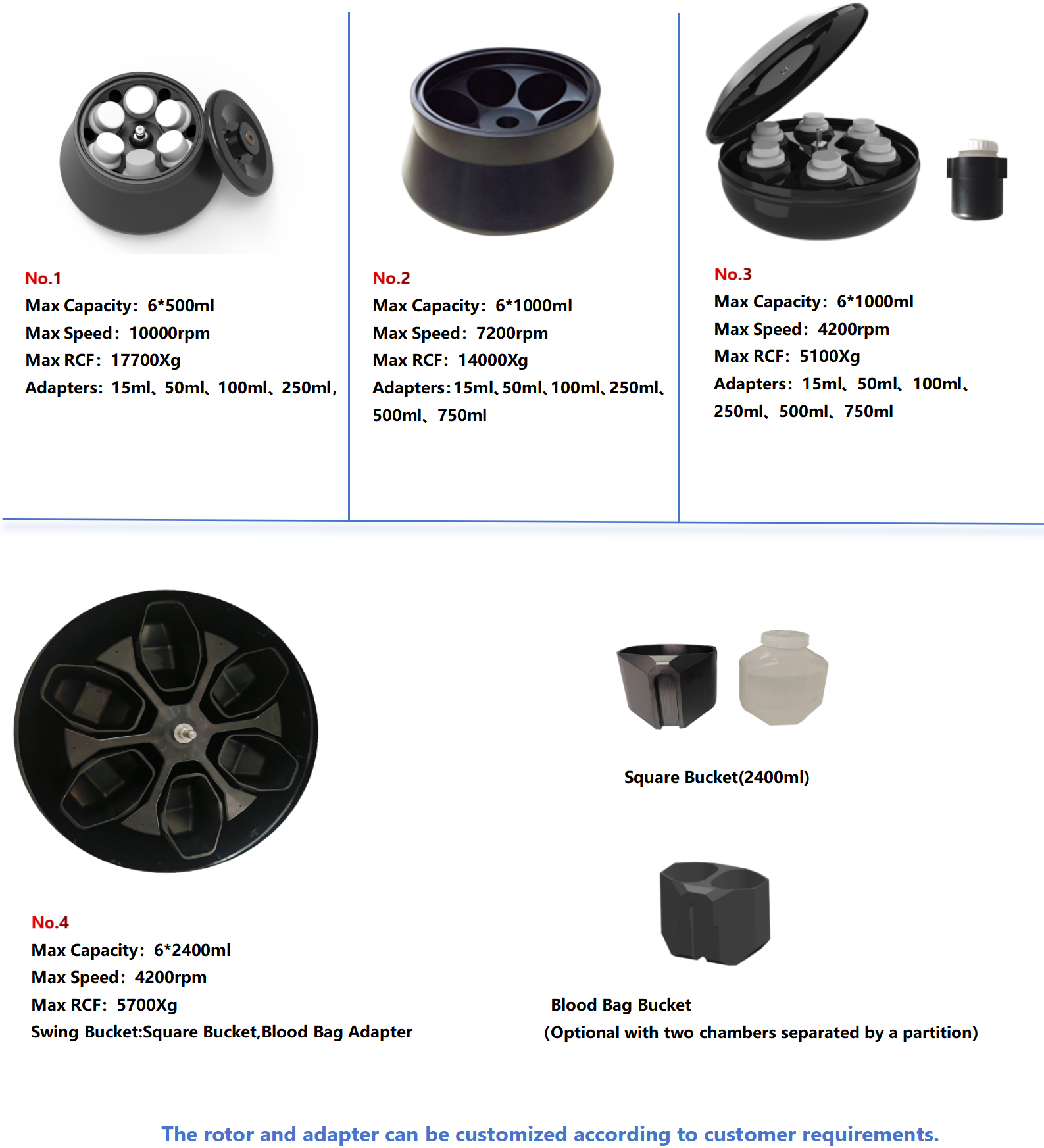

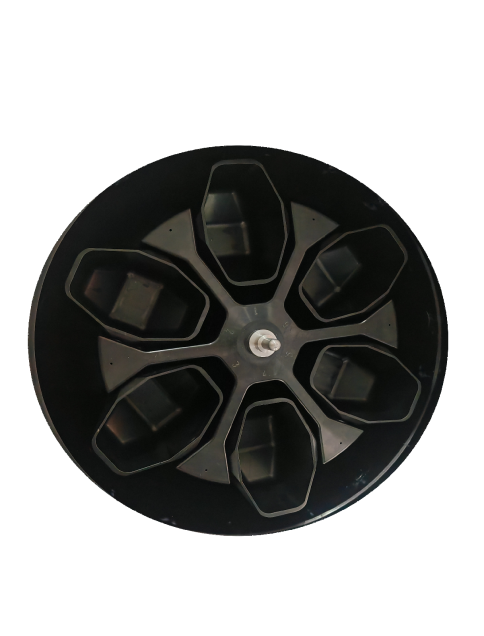

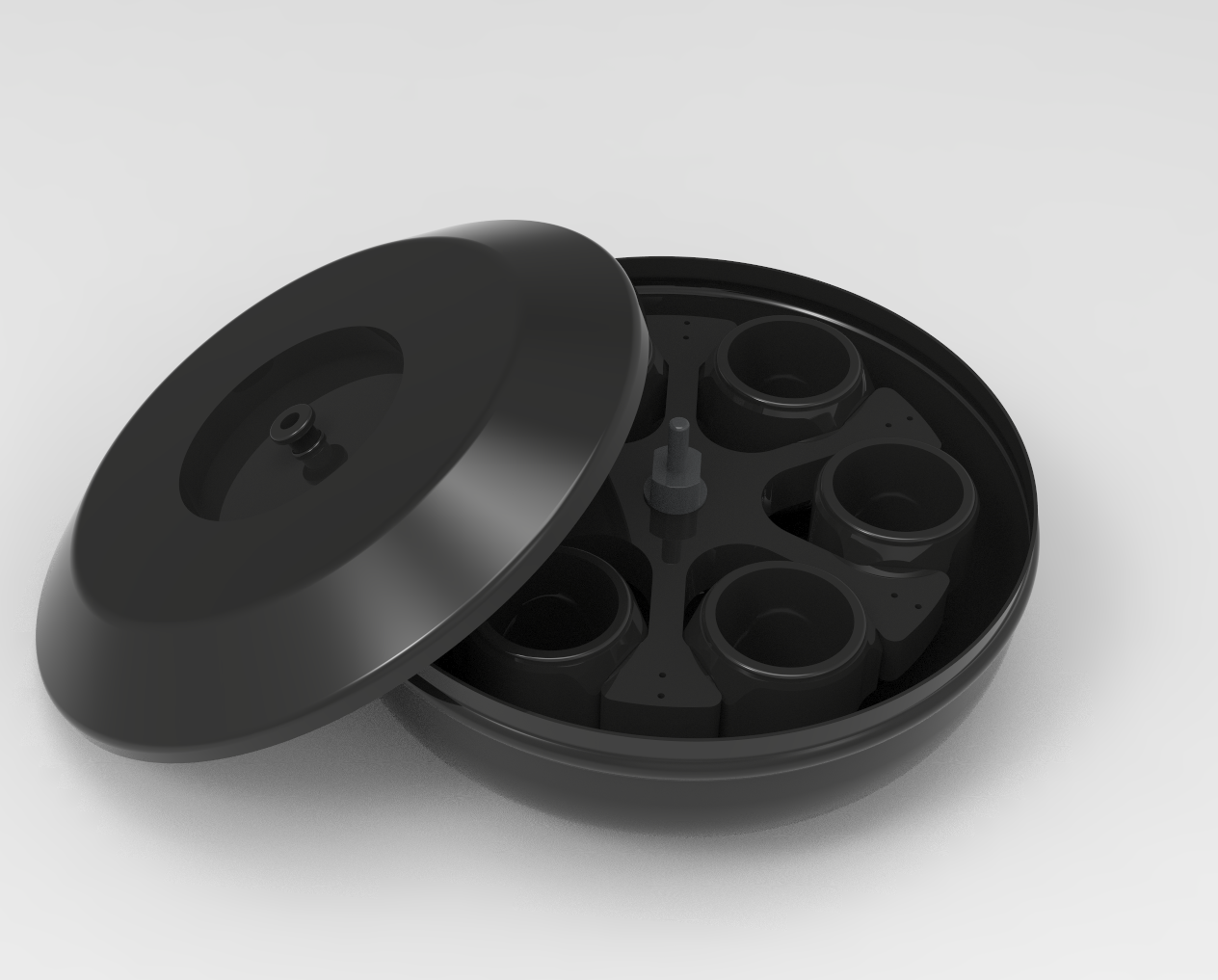

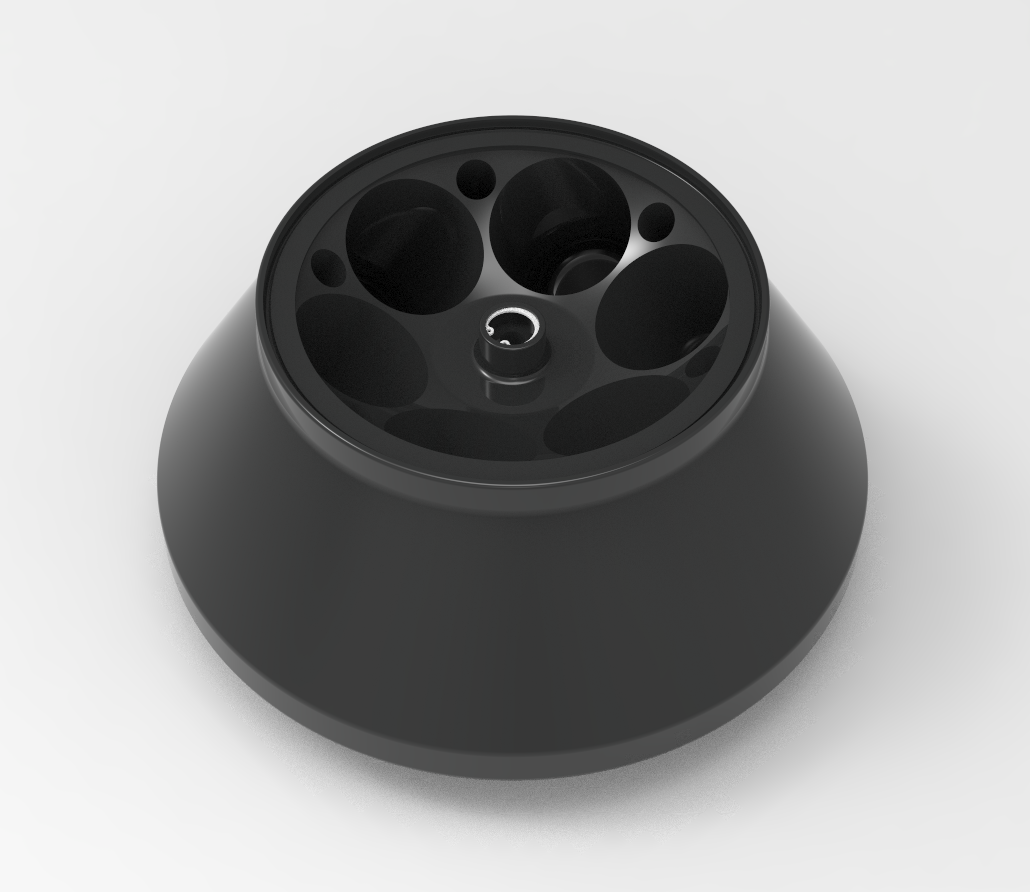

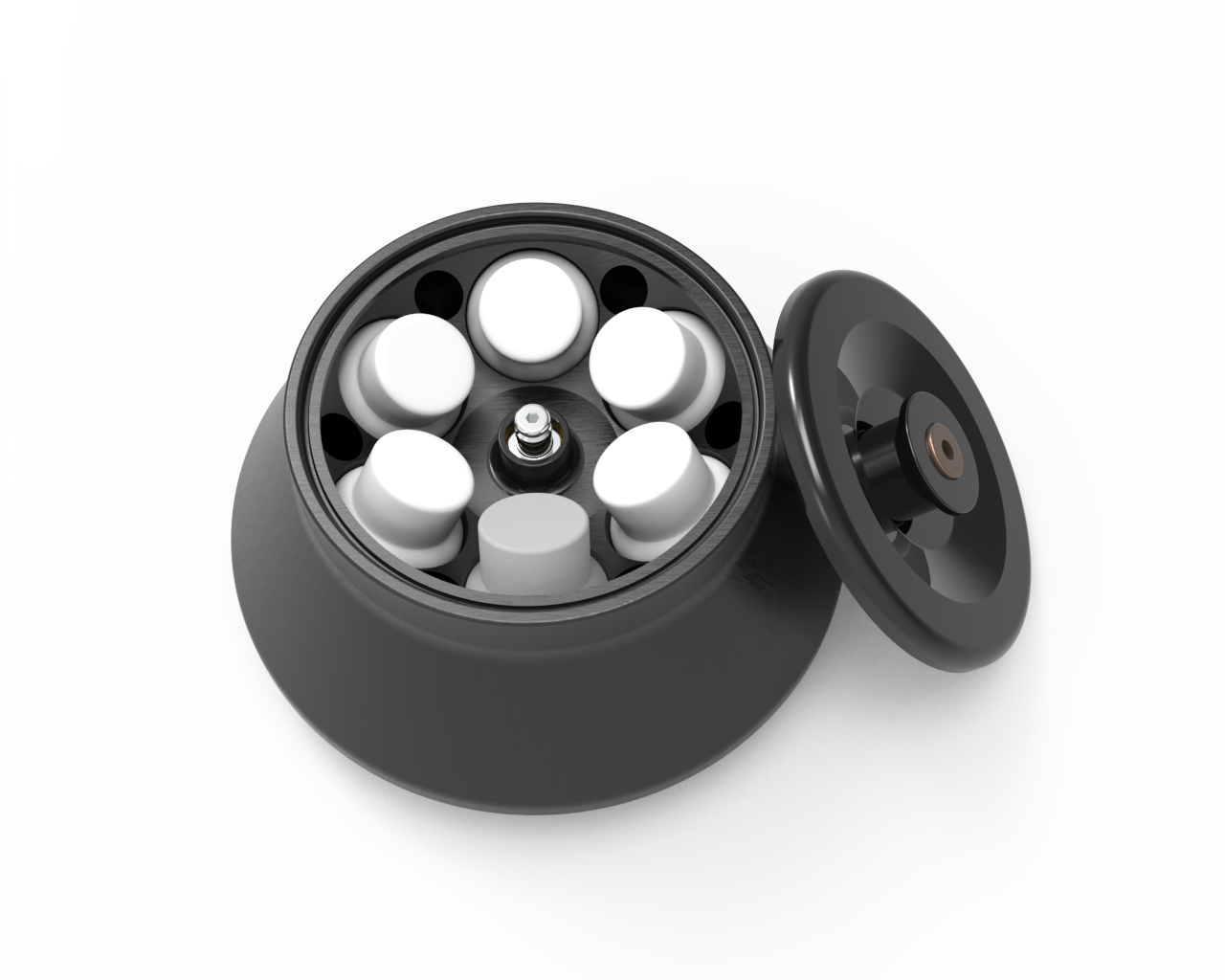

Rotors:
