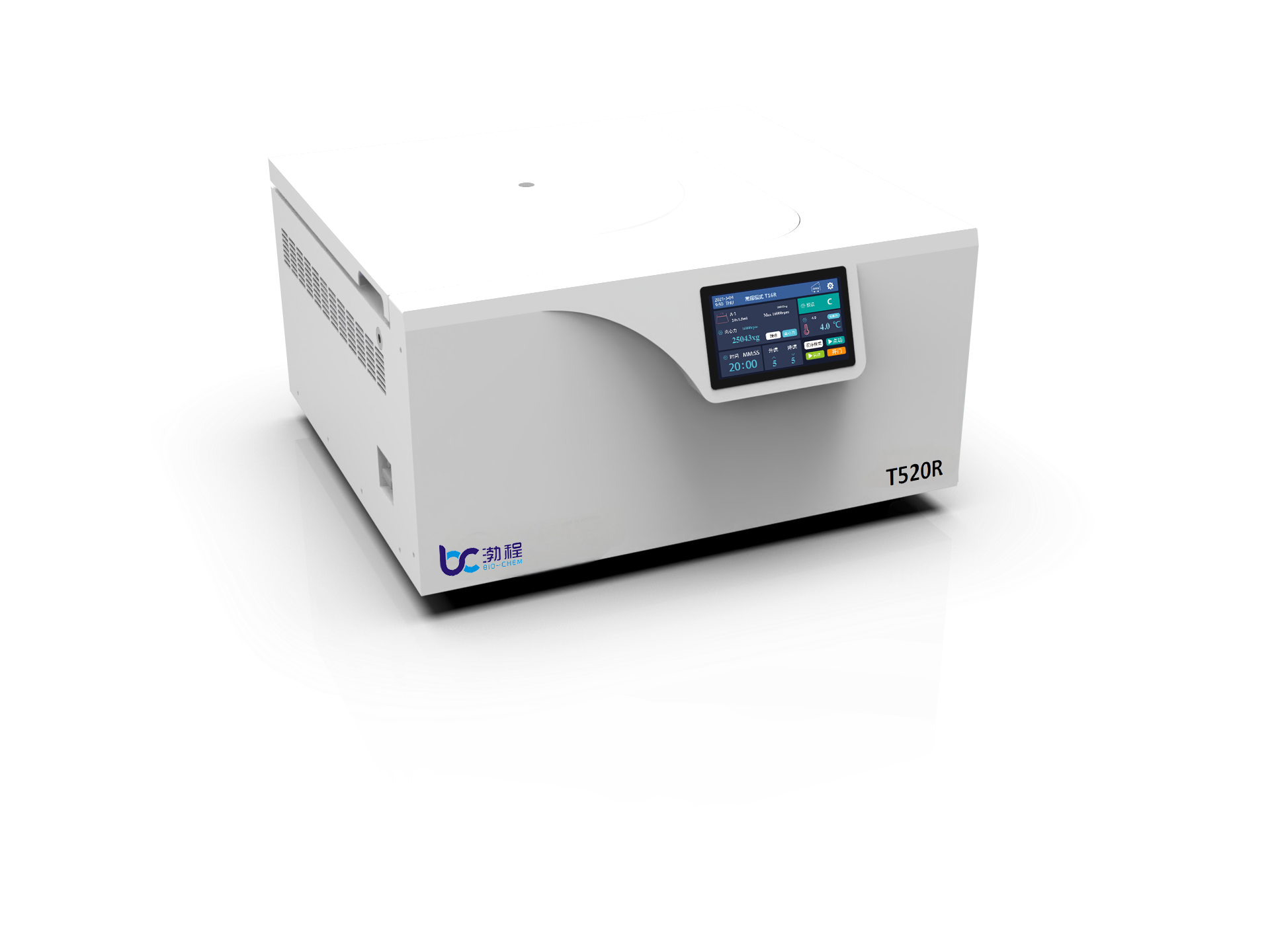

T520R High and Low-Speed Refrigerated Centrifuge
T520R is a high and low speed general purpose, with low temperature constant temperature refrigeration function of large capacity table centrifuge, widely used in biological research and clinical testing vacuum blood vessel special cap removal fields. Solve large volume separation and purification of samples.
Product Details

Features:


1Colorful 7-inch high-sensitivity touch-resistance resistive screen, allowing operation with gloves. Humanized interface, simple and convenient to operate;
2Single-chip microcomputer control, brushless motor drive, stable operation, low noise, high rotational speed accuracy, no carbon powder pollution;
3Dual locking functions of structure self-locking and motor self-locking, with safety detection of door lock and interface reminder for door cover not being closed;
4Adopting imported Tai Kang compressor, without fluorine refrigerant, the door cover can be continuously refrigerated after power-on, ensuring constant temperature;
5Quick pre-cooling, from room temperature (24℃) to pre-cool to 4℃ only takes 5-7 minutes;
6Patent design for preventing condensation water on the motor, preventing rusting of bearings due to long-term operation of condensation water, and prolonging service life;
7After centrifugation, the door lock of the centrifuge can be set to automatically open, reducing operation steps and facilitating sample taking and placing;
8All parts in contact with the volatile substances of samples in the inner cavity are made of 304 stainless steel, corrosion-resistant and durable;
9The sealing performance of the rotor with fixed angle adopts silicone fluorine rubber ring, the quick opening and closing of the rotor cover is a patented design, and it can be operated with one hand;
10The rotor can automatically identify and correct incorrect parameters, the horizontal rotor can have a symmetrical error of 10g and a diagonal error of less than 200g for mixed loading;
11Real-time speed and centrifugal force switching, can directly set the centrifugal force to start running, and have sound and indicator light prompts when there is a fault;
12There are protection functions such as door cover closed, incorrect operation, overspeed, over-temperature, imbalance, etc., safe and reliable;
13Fast speed adjustment, fast and slow speed can be adjusted, preventing sample suspension, and setting gradient centrifugation to ensure centrifugation effect.
14Reserved upgrade port, can provide long-term performance optimization and upgrade services.


Parameters:


Model

T520R

Max Capacity

4*750ml

Max Speed

20000rpm

Max RCF

27100Xg

Temprature Range

-20-40

Temprature Accuracy

±1

Speed Accuracy

±10r/min

Timer Range

0-99min59s

Accel/Decel Setting

1-9

Noise

65dBA

Power Supply

AC220 50Hz 10A

Consumption

1300W

SizeL*W*Hmm

612*680*352

Weigh(without rotor)

91kg

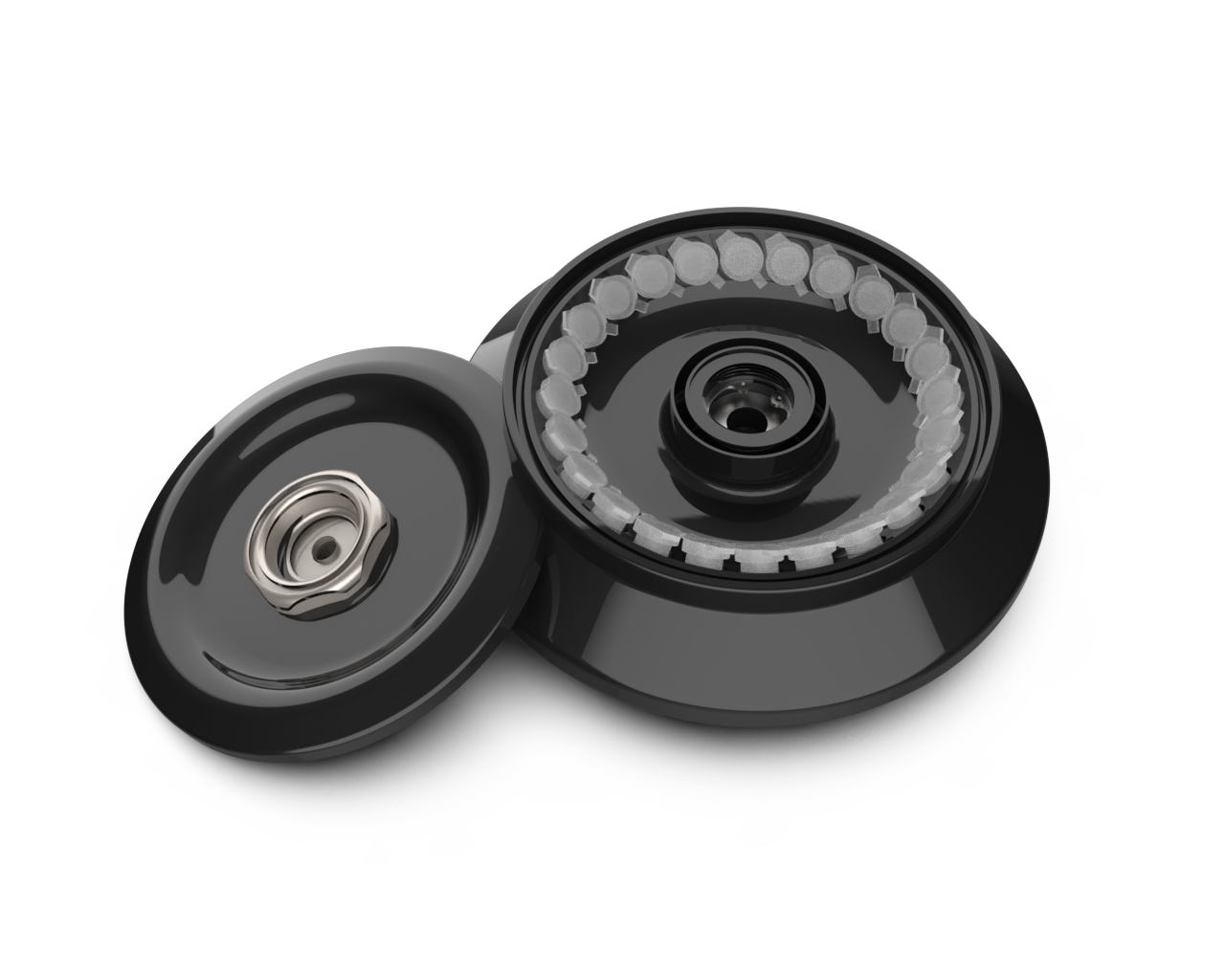

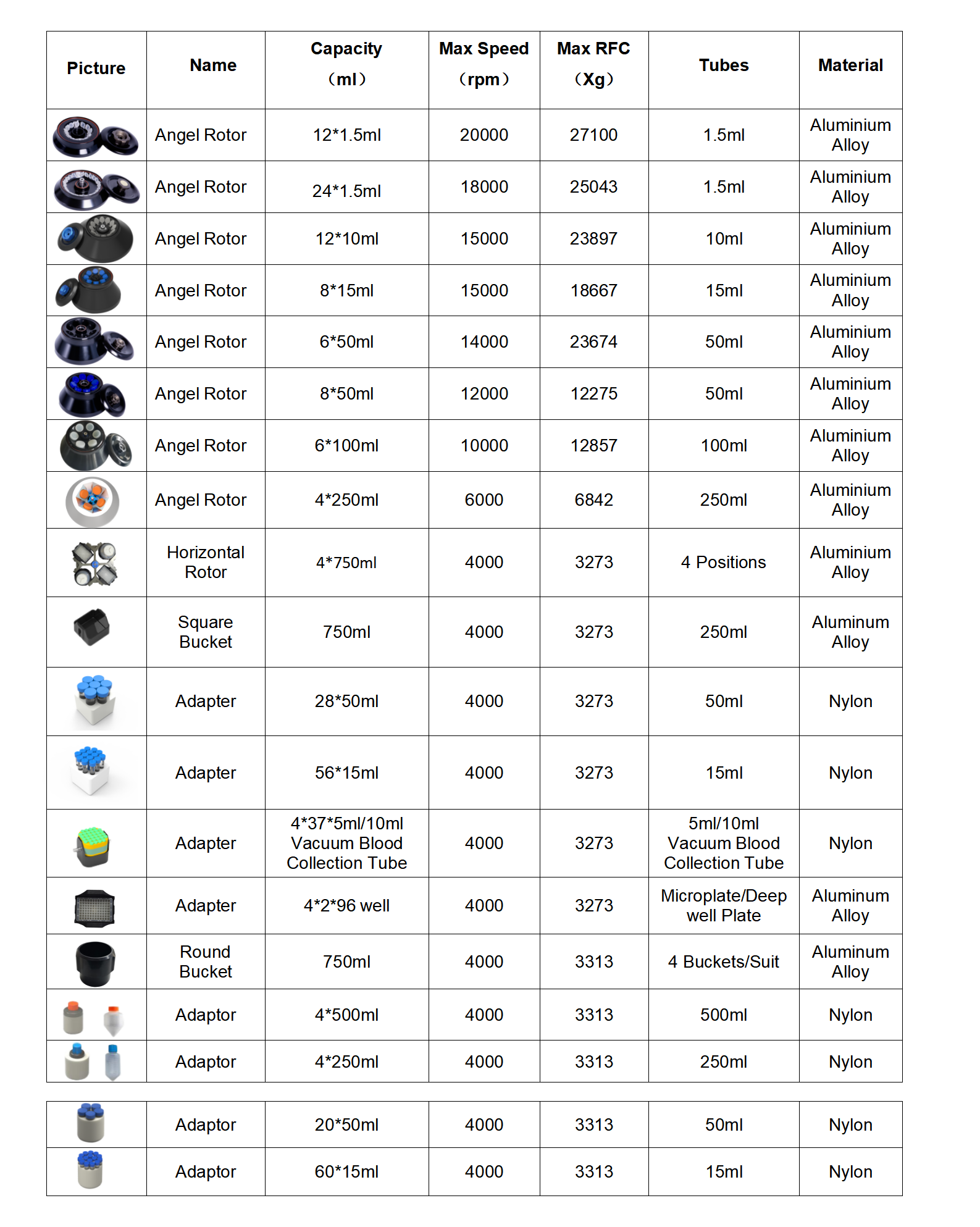

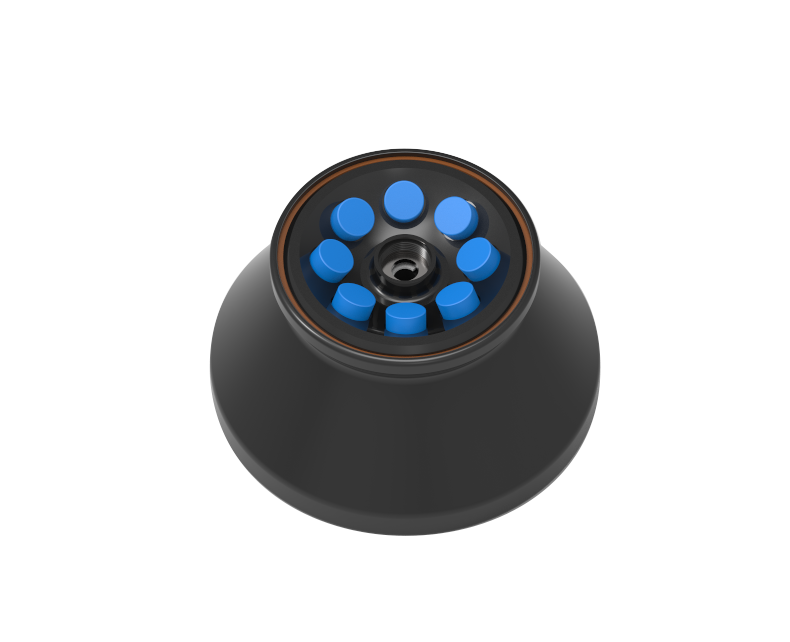

Rotors:



Rotors and adapters can be customized according to specific requirements.
