Features:
1、Color 7-inch high-sensitivity resistive touch screen with glove operation. User-friendly interface, simple and convenient to operate;
2、Single-chip microcomputer control, brushless motor drive, stable operation, low noise, high rotational speed accuracy, no carbon powder pollution;
3、Dual locking functions of structure self-locking and motor self-locking, with safety detection of door lock and interface reminder for door cover not closed;
4、Adopt imported Tai Kang compressor, no fluorine refrigerant, the door cover can be continuously refrigerated after power-on, ensuring constant temperature;
5、 Quick pre-cooling, from room temperature (24℃) to pre-cool to 4℃ only takes 5-7 minutes;
6、 Patent design for preventing condensation water on the motor, preventing rusting of bearings due to long-term operation of condensation water, and prolonging service life;
7、 After centrifugation, the door lock of the centrifuge can be set to automatically open, reducing operation steps and facilitating sample taking and placing;
8、 All parts in contact with the sample volatiles in the inner cavity are made of 304 stainless steel, corrosion-resistant and durable;
9、 The sealing performance of the rotor with fixed angle adopts silicone fluorine rubber ring, the quick opening and closing of the rotor cover is a patented design, and it can be operated with one hand;
10、The rotor can automatically identify and correct error parameters, the horizontal rotor can have a symmetrical error of 10g and a diagonal error of less than 200g for mixed loading;
11、Real-time speed and centrifugal force switching, can directly set the centrifugal force to start running, and have sound and indicator light prompts when there is a fault;
12、There are protection functions such as door cover closed, incorrect operation, overspeed, over-temperature, imbalance, etc., safe and reliable;
13、Fast speed adjustment, fast and slow adjustable, preventing sample suspension, can set gradient centrifugation, ensuring centrifugation effect.
14、Reserved upgrade port, can provide long-term performance optimization and upgrade services.
Parameters:
Model |
T518R |
Max Capacity |
4*500ml |
Max Speed |
18000rpm |
Max RCF |
25043Xg |
Temprature Range |
-20℃-40℃ |
Temprature Accuracy |
±1℃ |
Speed Accuracy |
±10r/min |
Timer Range |
0-99min59s |
Accel/Decel Setting |
1-9 |
Noise |
≤65dB(A) |
Power Supply |
AC220 50Hz 10A |
Consumption |
1300W |
Size(L*W*H)mm |
586*640*328 |
Weigh(without rotor) |
81kg |

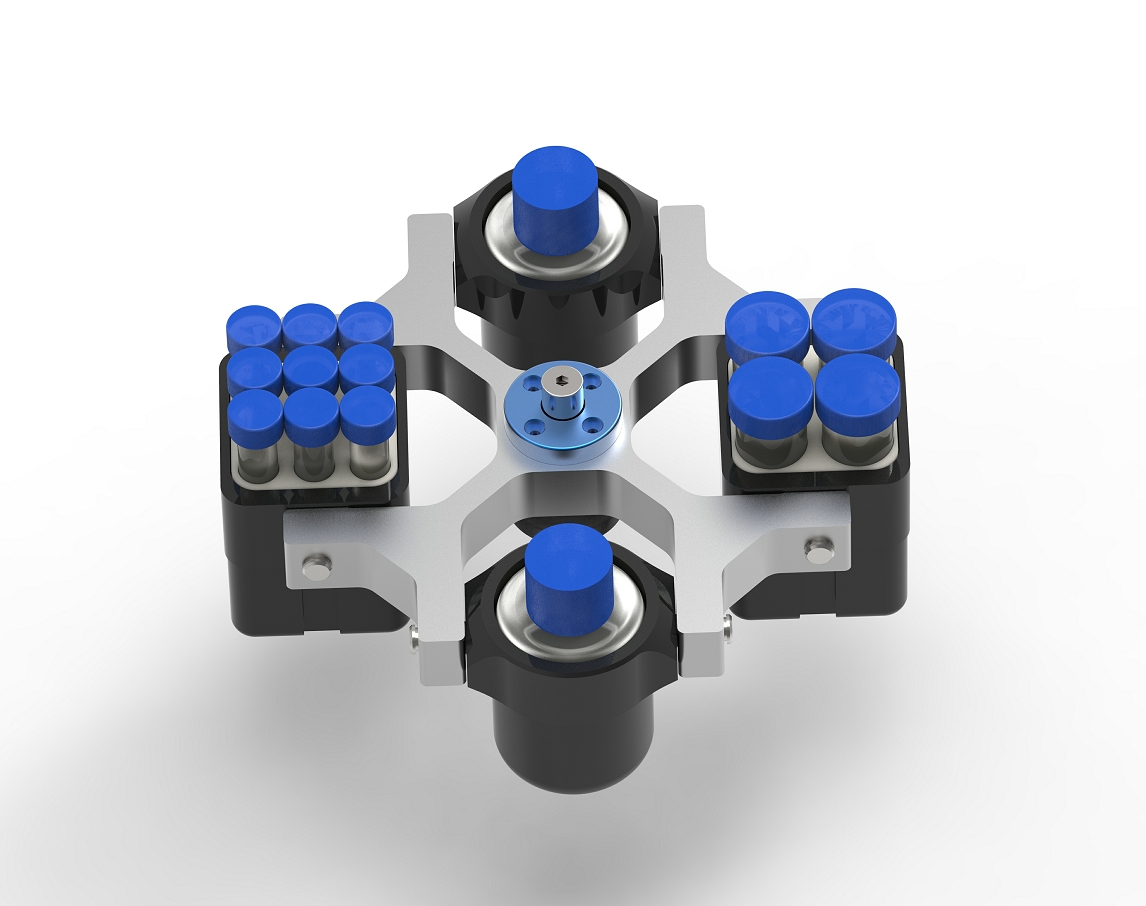

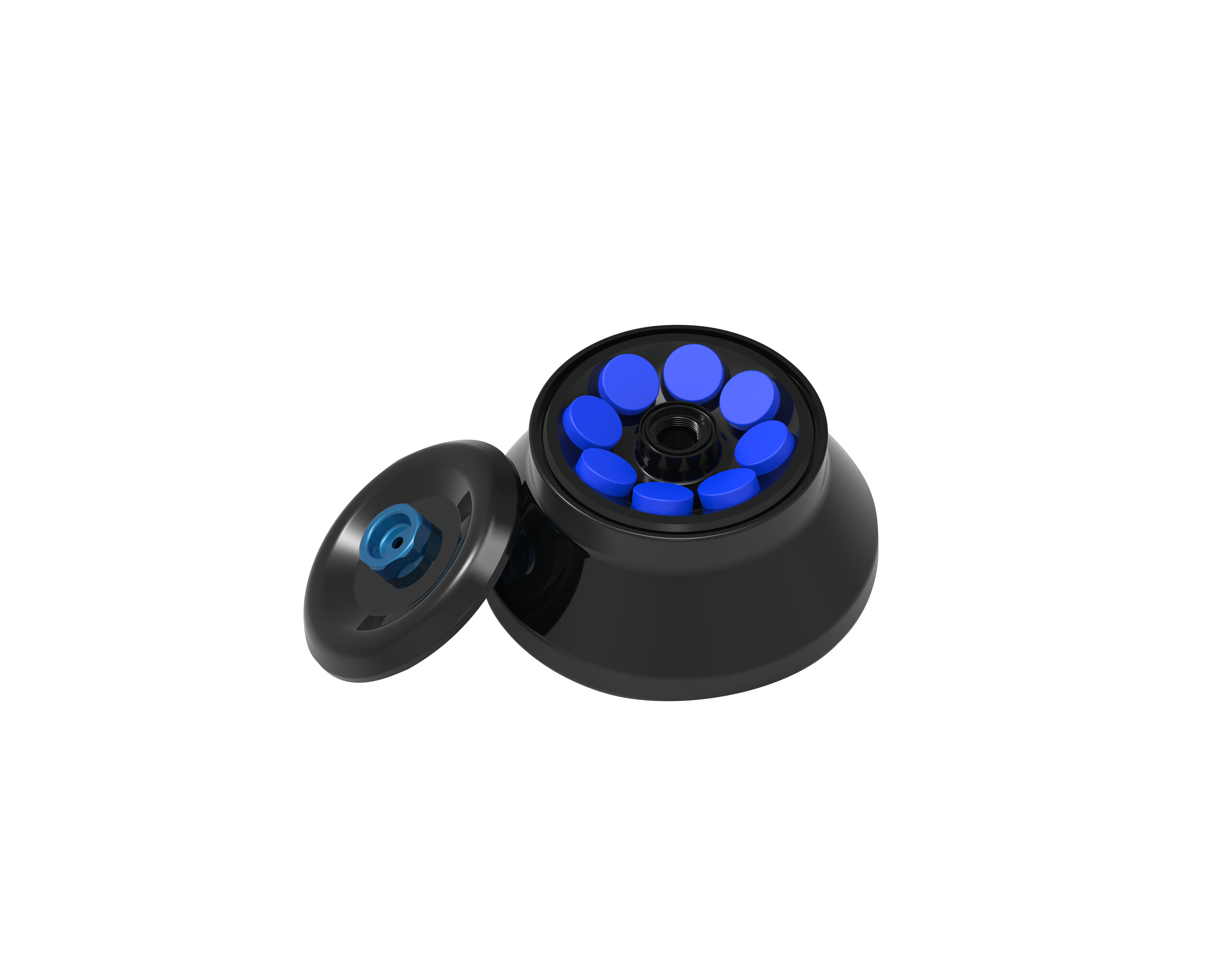

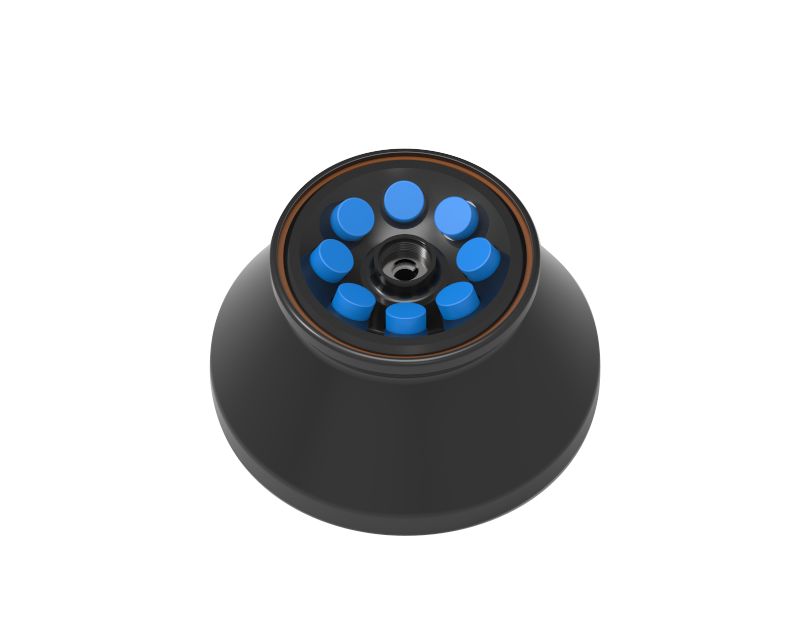

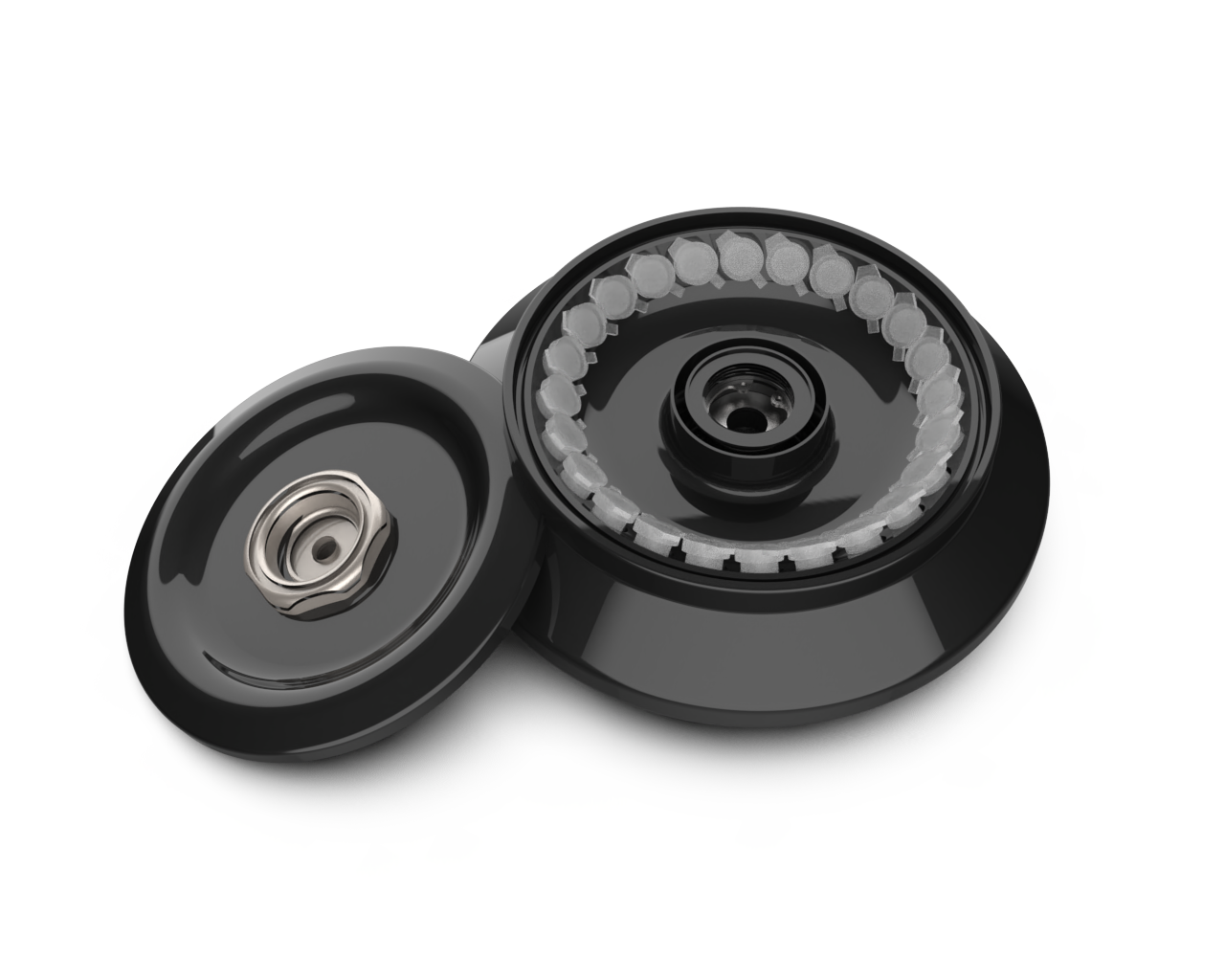

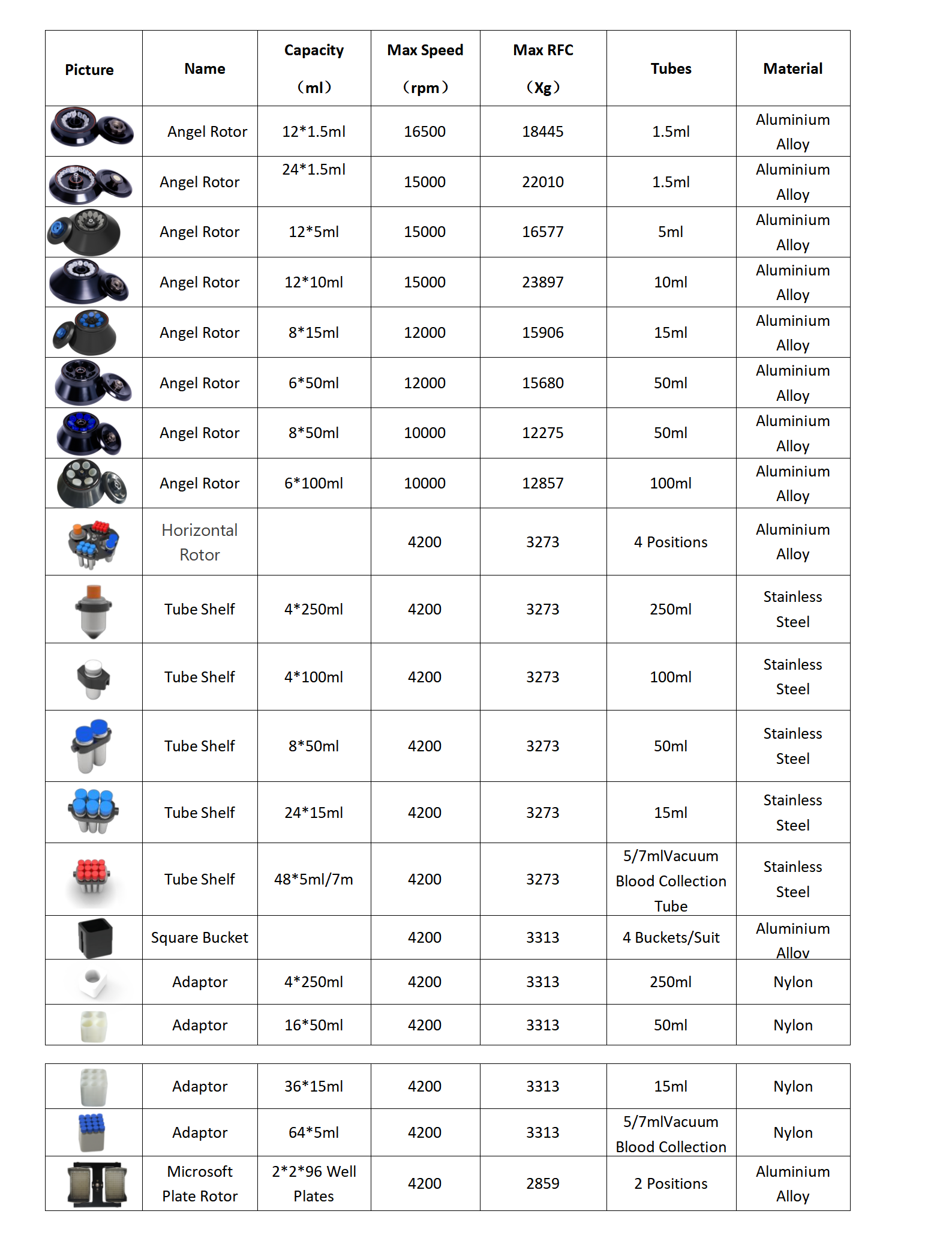

Rotors:
Rotors and adapters can be customized according to specific requirements.
