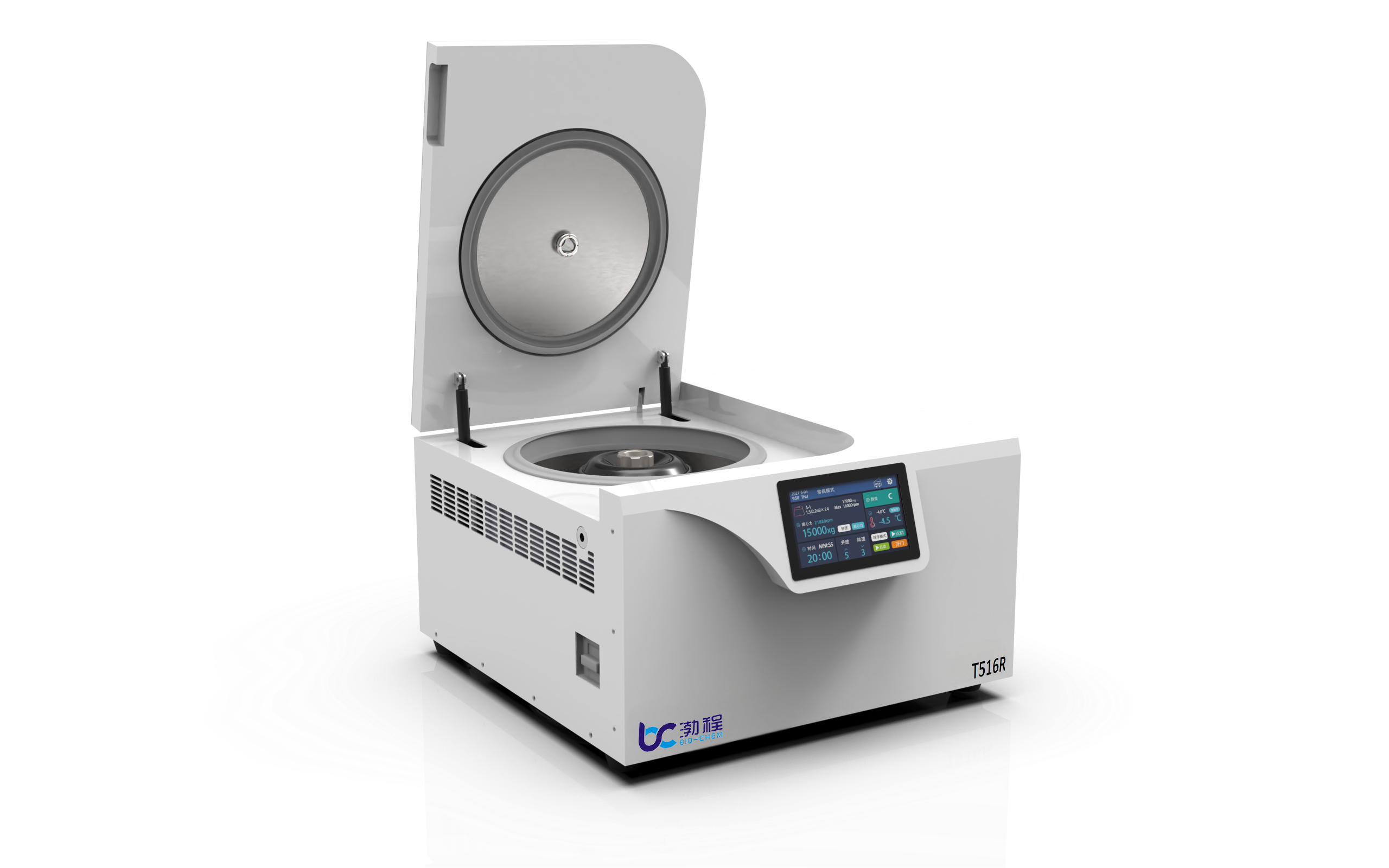

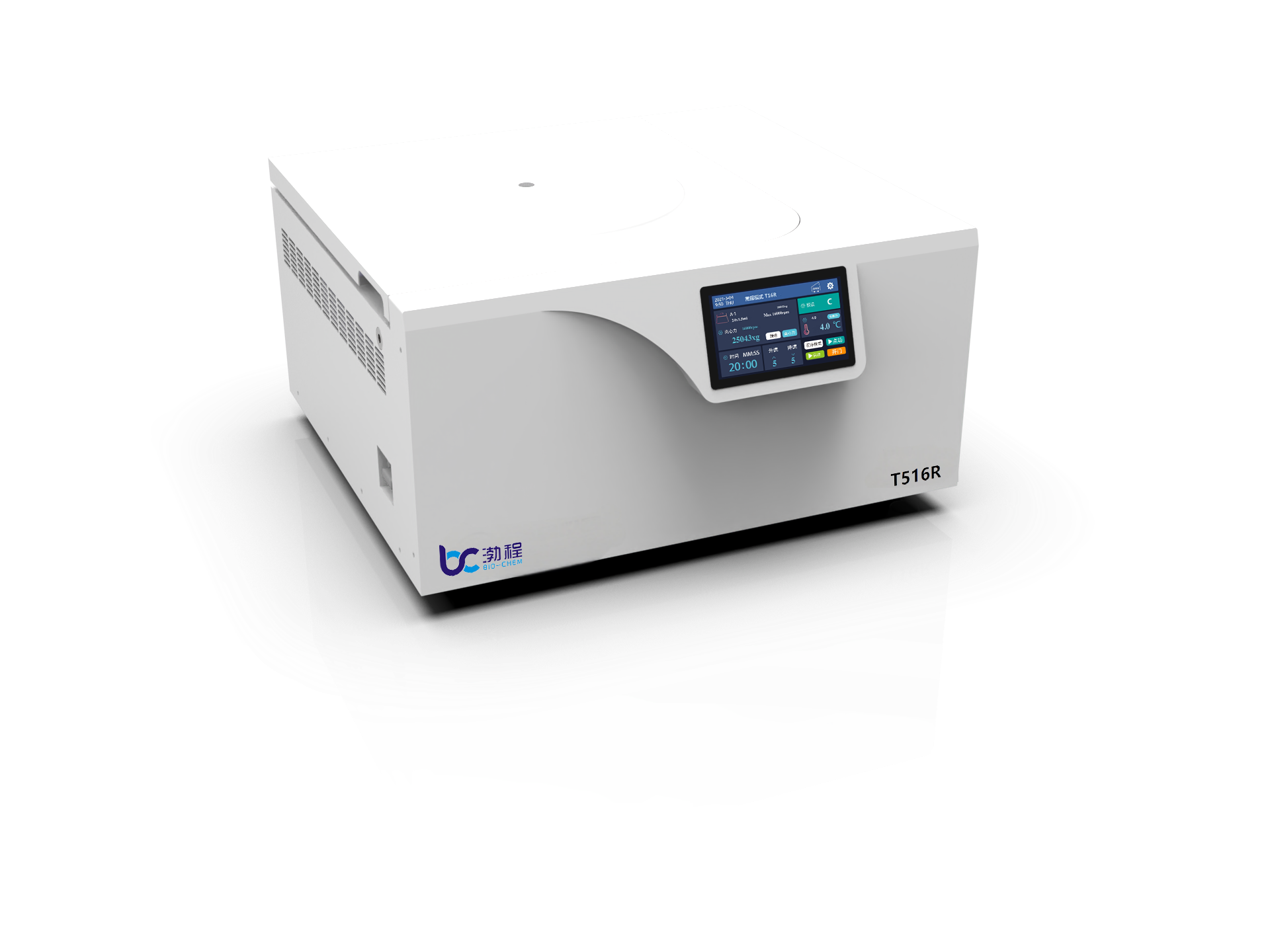

T516R High and Low-Speed Refrigerated Centrifuge
The T516R bench-top refrigerated high-speed centrifuge is a medium-throughput, high-low speed compatible and refrigerated laboratory universal centrifuge. It is suitable for various application fields such as bioengineering, chemical engineering, hospital medicine, disease control and research.
Product Details

Feature


1Color 7-inch high-sensitivity resistive touch screen with glove operation. User-friendly interface, simple and convenient to operate;
2Single-chip microcomputer control, brushless motor drive, stable operation, low noise, high rotational speed accuracy, no carbon powder pollution;
3Dual locking functions of structure self-locking and motor self-locking, with safety detection of door lock and interface reminder for door cover not closed;
4Adopt imported Tai Kang compressor, no fluorine refrigerant, the door cover can be continuously refrigerated after power-on, ensuring constant temperature;
5Quick pre-cooling, from room temperature (24℃) to pre-cool to 4℃ only takes 5-7 minutes;
6Patent design for preventing condensation water on the motor, preventing rusting of bearings due to long-term operation of condensation water, and prolonging service life;
7After centrifugation, the door lock of the centrifuge can be set to automatically open, reducing operation steps and facilitating sample taking and placing;
8All parts in contact with the volatile substances of the samples in the inner cavity are made of 304 stainless steel, corrosion-resistant and durable;
9The sealing performance of the rotor adopts silicone fluorine rubber ring, the rotor cover with a fixed angle is quick to open and close and is a patented design, which can be operated with one hand;
10The rotor can automatically identify and correct error parameters, the horizontal rotor can have a symmetrical error of 10g and a diagonal error of less than 200g for mixed loading;
11Real-time speed and centrifugal force switching, can directly set the centrifugal force to start running, and have sound and indicator light prompts when there is a fault;
12There are protection functions such as door cover closed, incorrect operation, overspeed, over-temperature, imbalance, etc., safe and reliable;
13Fast speed adjustment, fast and slow speed adjustable, can prevent sample suspension, can set gradient centrifugation, ensuring centrifugation effect.
14Reserved upgrade port, can provide long-term performance optimization and upgrade services.


Parameters:


Model

T516R

Max Capacity

4*300ml

Max Speed

16000rpm

Max RCF

24853Xg

Temprature Range

-20-40

Temprature Accuracy

±1

Speed Accuracy

±10r/min

Timer Range

0-99min59s

Accel/Decel Setting

1-9

Noise

65dBA

Power Supply

AC220 50Hz 10A

Consumption

1300W

Size(L*W*H)mm

550*550*315

Weigh(without rotor)

53kg

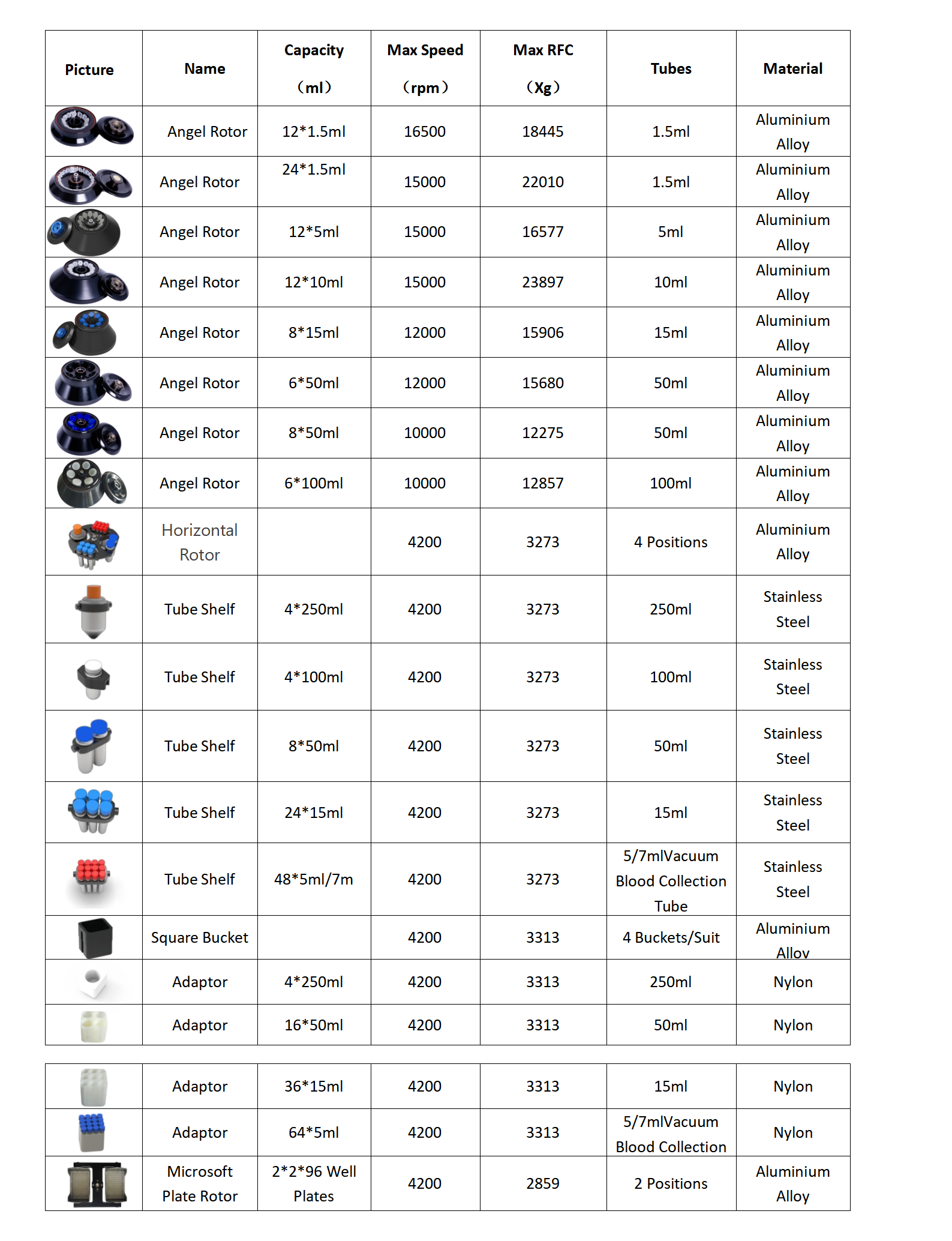

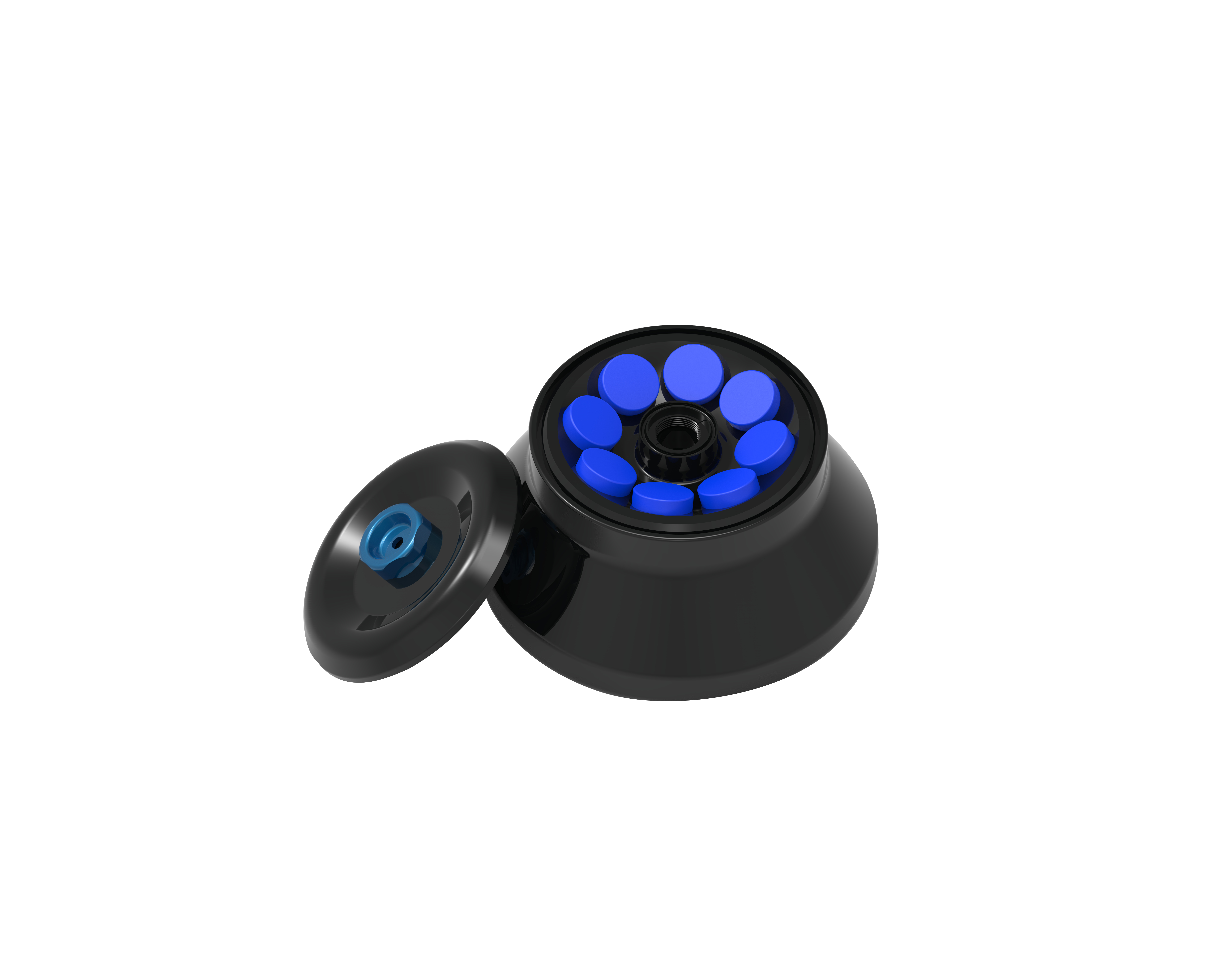

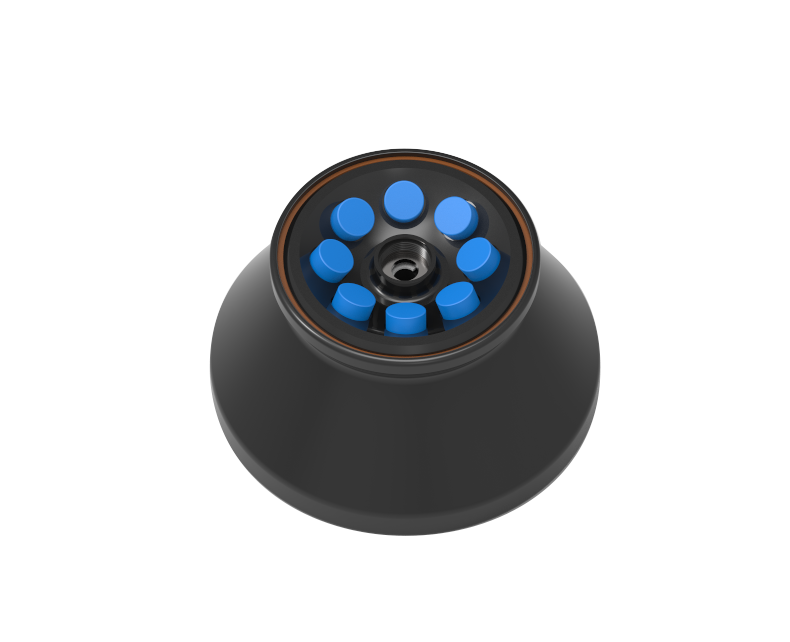

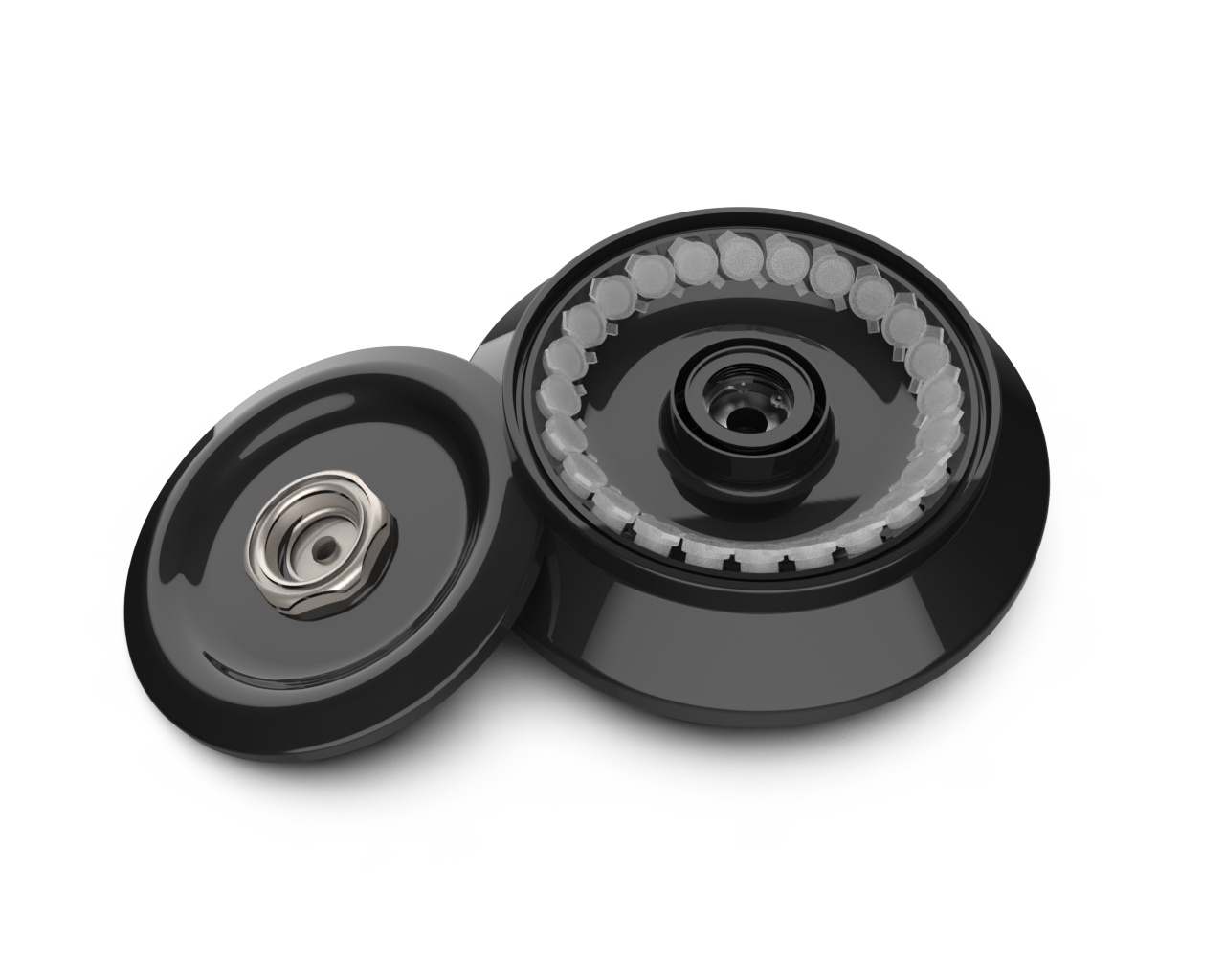

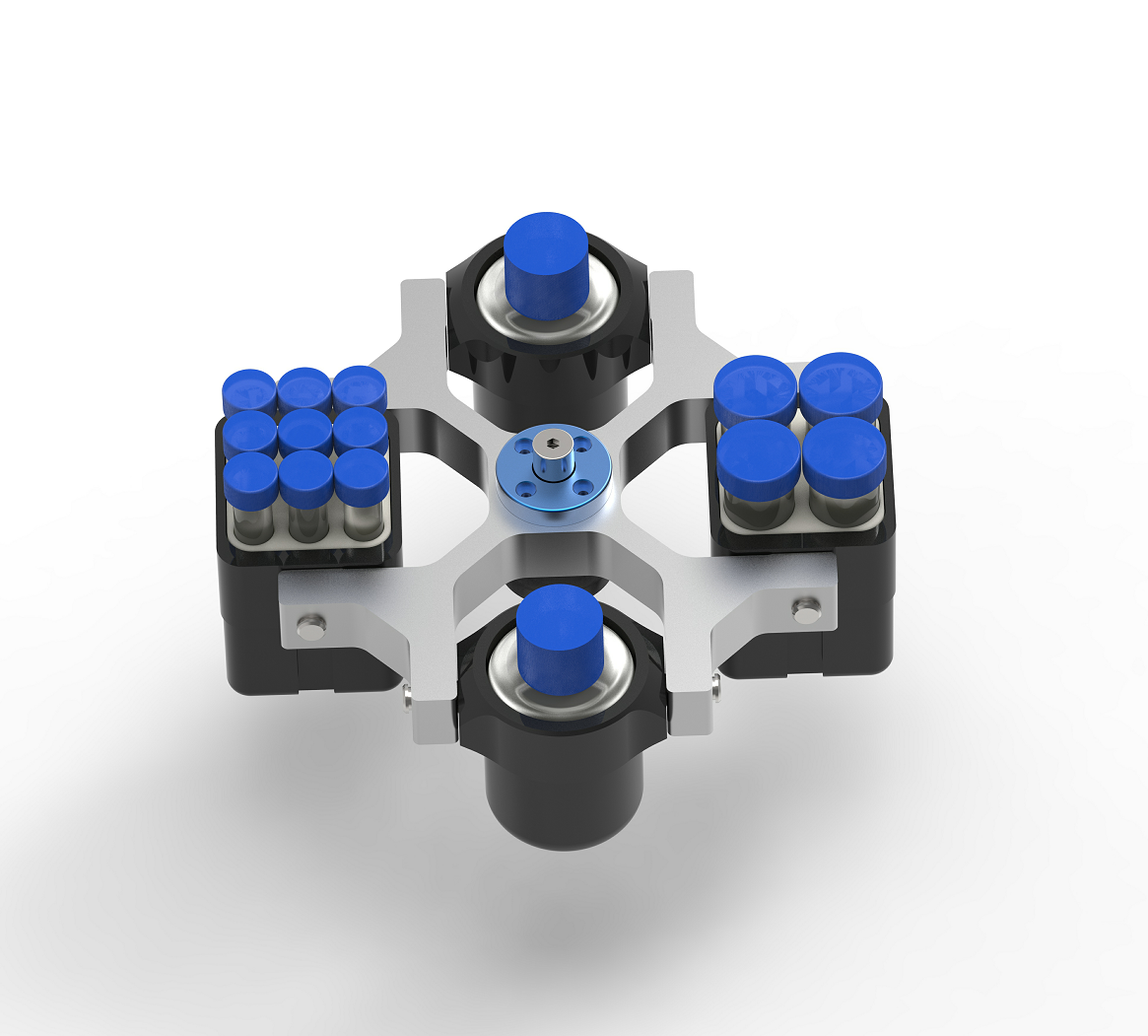

Rotors:

Rotors and adapters can be customized according to specific requirements.
