Features:
1、7-inch color high-sensitivity resistive touch screen, operable with gloves. User-friendly interface, simple and convenient operation;
2、Controlled by a single-chip microcomputer, driven by a brushless motor, stable operation, low noise, and high rotational speed accuracy;
3、Dual protection of the door cover with self-locking structure and motor self-locking, with safety detection and reminder for the door lock;
4、Equipped with imported Tecumseh compressor and non-fluorine refrigerant. After power-on, the door cover can be closed for continuous cooling to ensure constant temperature;
5、Quick pre-cooling, from room temperature (24℃) to 4℃ in just 5-7 minutes;
6、Patent design for motor anti-condensation water, preventing condensation water from corroding the bearings during long-term operation and extending the service life;
7、Can be set to automatically unlock the door cover after centrifugation, reducing operation steps and facilitating sample handling;
8、All parts in contact with sample volatiles and moving joints are made of 304 stainless steel for corrosion resistance and safety;

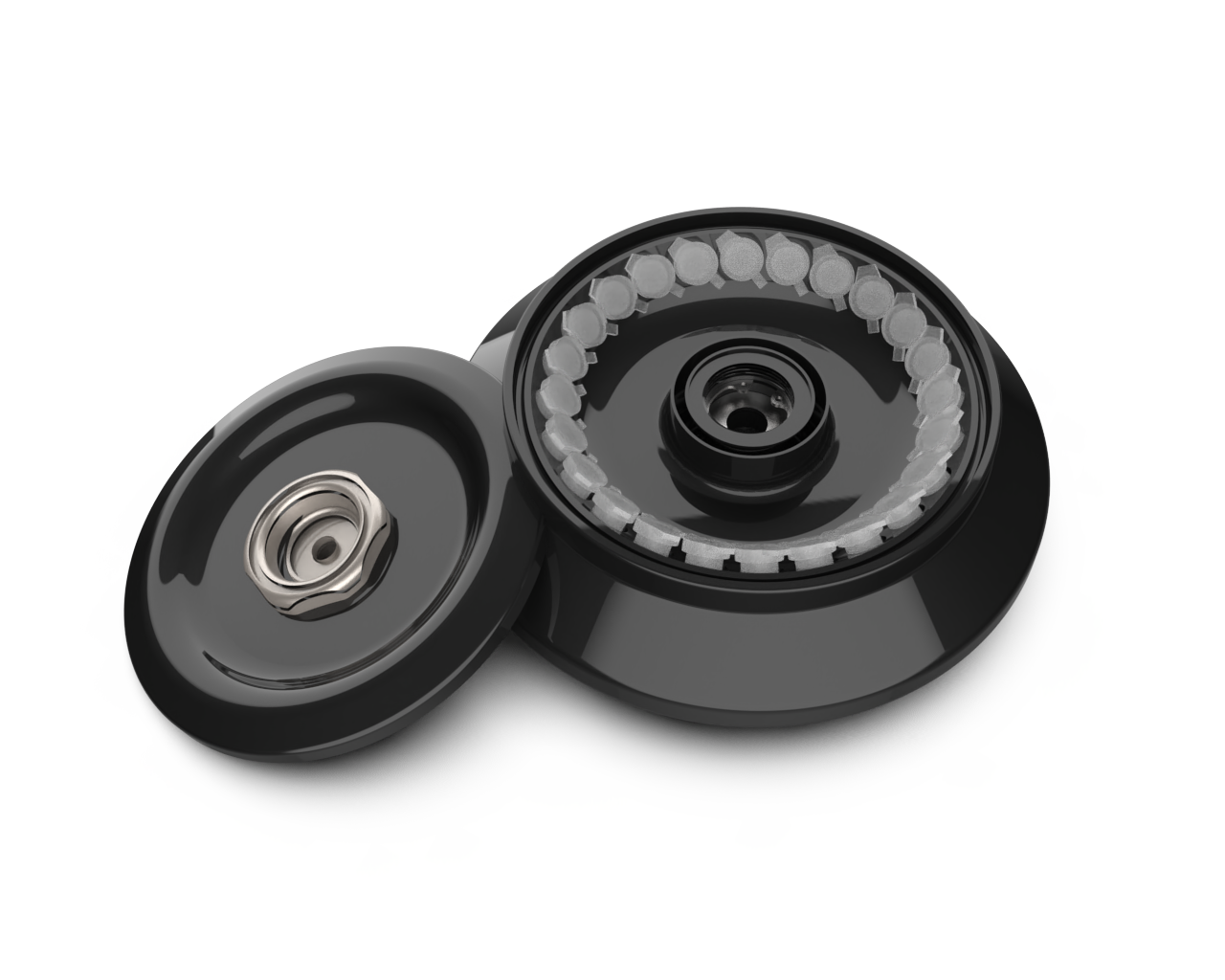

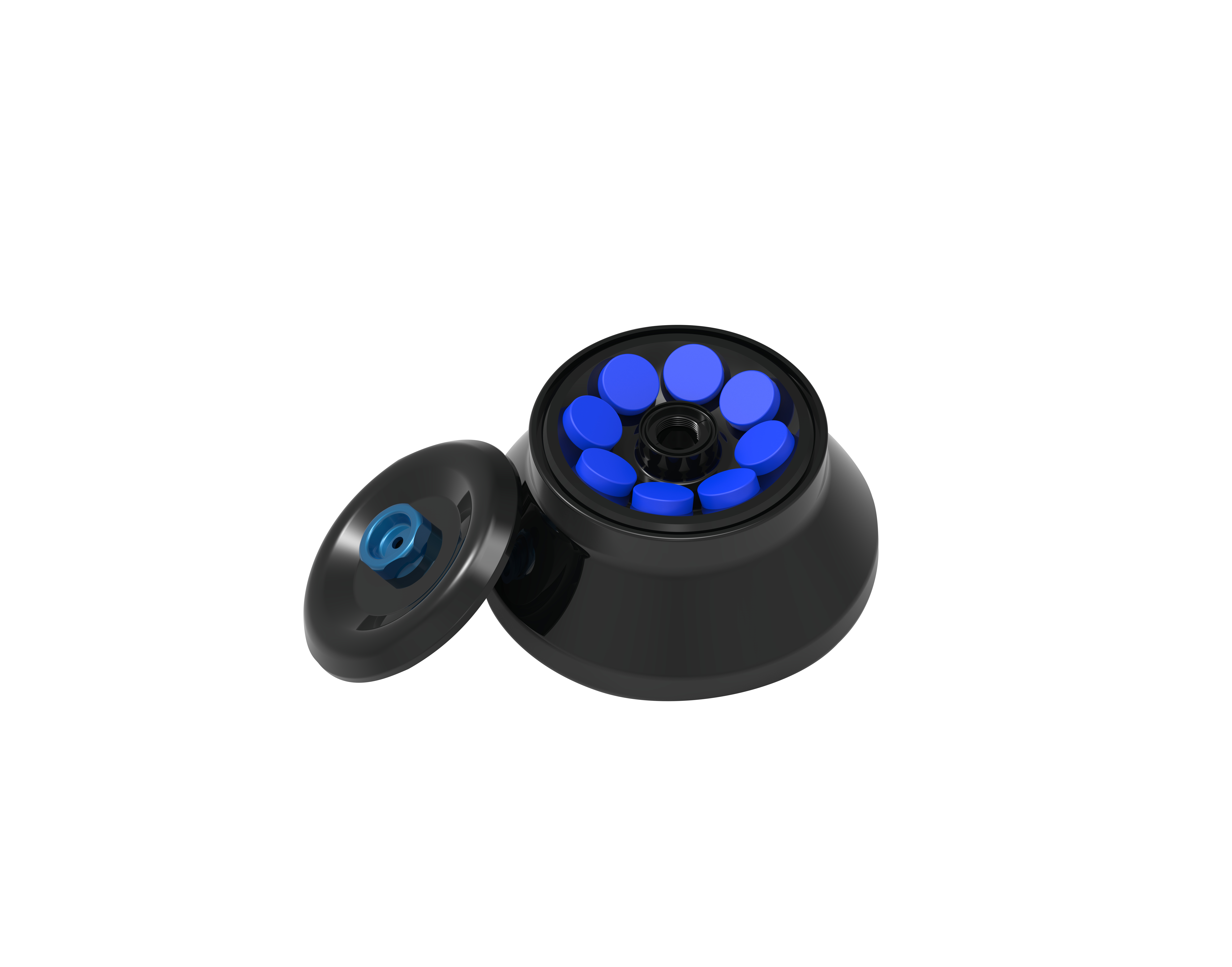

9、Airtight fixed-angle rotor with a patented quick-opening and closing rotor cover design, operable with one hand;
10、Real-time PRM/RCF switching, direct setting of centrifugal force operation, with sound and indicator light alerts in case of faults;
11、Protection functions including door cover, incorrect operation, overspeed, over-temperature, and imbalance to ensure the safety of personnel and equipment;
12、Adjustable acceleration and deceleration to prevent resuspension, protect sensitive samples, and support gradient centrifugation.
Parameters:
Model |
T16R |
Max Capacity |
6*100ml |
Max Speed |
16500rpm |
Max RCF |
23897 Xg |
Temprature Range |
-20℃-40℃ |
Temprature Accuracy |
±1℃ |
Speed Accuracy |
±10r/min |
Timer Range |
0-99min59s |
Accel/Decel Setting |
1-9 |
Noise |
≤65dB(A) |
Power Supply |
AC220 50Hz 10A |
Consumption |
1300W |
Size(L*W*H)mm |
550*550*315 |
Weigh(without rotor) |
53kg |
