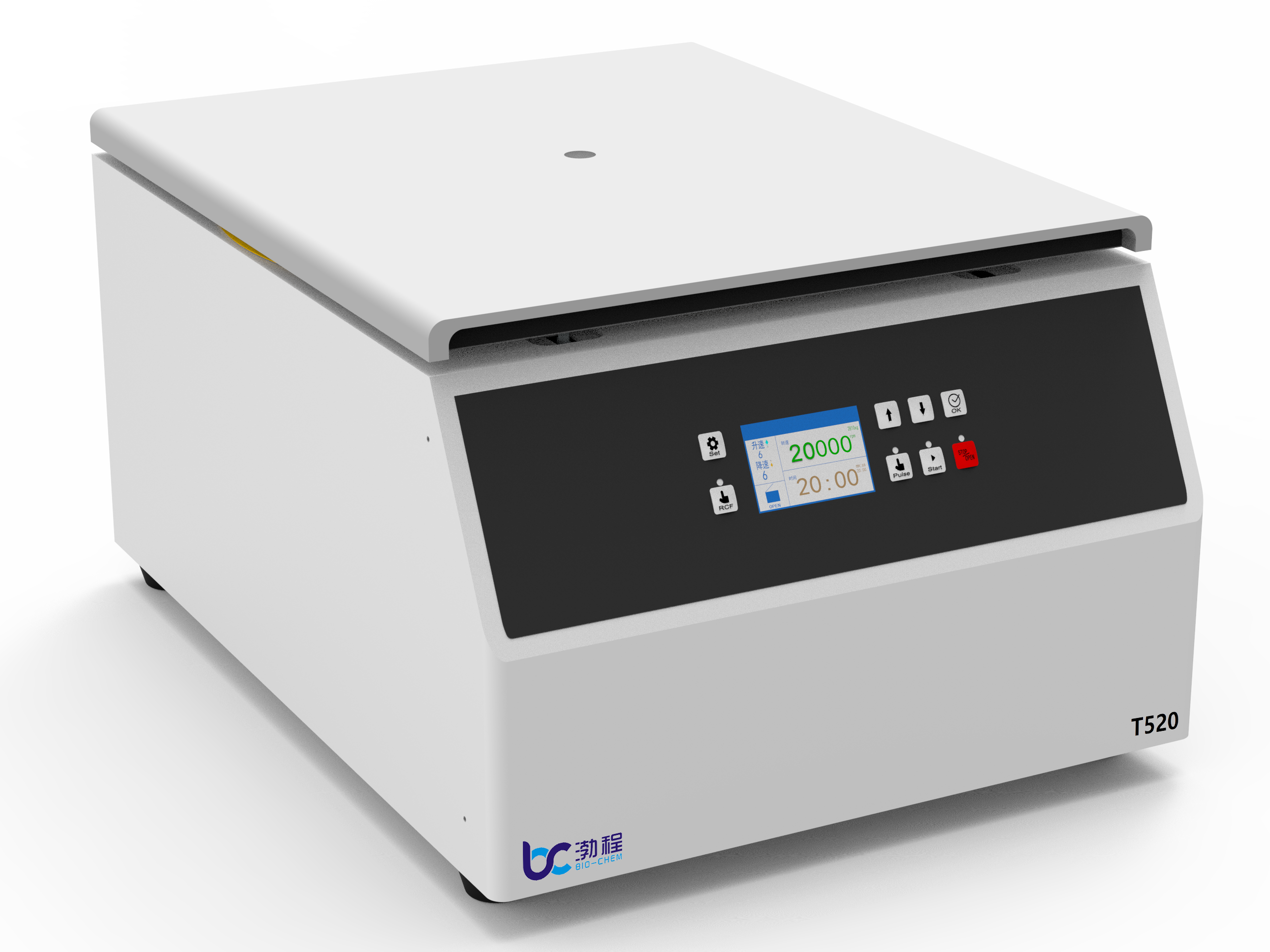

T520 High and Low-Speed Centrifuge
The T520 is a universal high and low-speed bench-top centrifuge with large capacity at normal temperature. It is widely applicable in fields such as biological research and clinical laboratory for vacuum blood collection tubes for special sample disarming. It is designed to handle large-scale separation and purification of samples.
Product Details

Features:


1Colorful high-sensitivity touch LCD screen, allowing operation with gloves. User-friendly interface, simple and convenient to operate;

2Single-chip microcomputer control, brushless motor drive, stable operation, low noise, high rotational speed accuracy, no carbon powder pollution;
3Dual locking functions of structure self-locking and motor self-locking, with safety detection of door lock and interface reminder for unopened door cover;
4After centrifugation, the centrifuge door lock can be set to automatically open, reducing operation steps and facilitating sample taking and placing;
5All parts in contact with the inner cavity and the air duct, as well as the parts of the sample volatiles, are made of 304 stainless steel, corrosion-resistant and durable;
6The airtightness of the fixed-angle rotor adopts silicone fluorine rubber ring, the quick opening and closing of the fixed-angle rotor cover is a patented design, and it can be operated with one hand;
7The rotor can automatically identify and correct incorrect parameters, and the horizontal rotor can have a symmetrical error of 10g and a diagonal error of less than 200g for mixed loading;
8Real-time speed and centrifugal force switching, can directly set the centrifugal force to start running, and have sound and indicator light prompts when there is a fault;
9There are protection functions such as door cover closing, incorrect operation, overspeed, overtemperature, imbalance, etc., safe and reliable;
10The speed can be adjusted quickly and slowly, preventing sample suspension and ensuring centrifugal effect.


Parameters:


Model

T520

Max Capacity

4*750ml

Max Speed

20000rpm

Max RCF

27100Xg

Speed Accuracy

±10r/min

Timer Range

0-99min59s

Accel/Decel Setting

1-9

Noise

≤65dB(A)

Power Supply

AC220 50Hz 10A

Consumption

1000W

Size(L*W*H)mm

600*465*335

Weigh(without rotor)

58kg

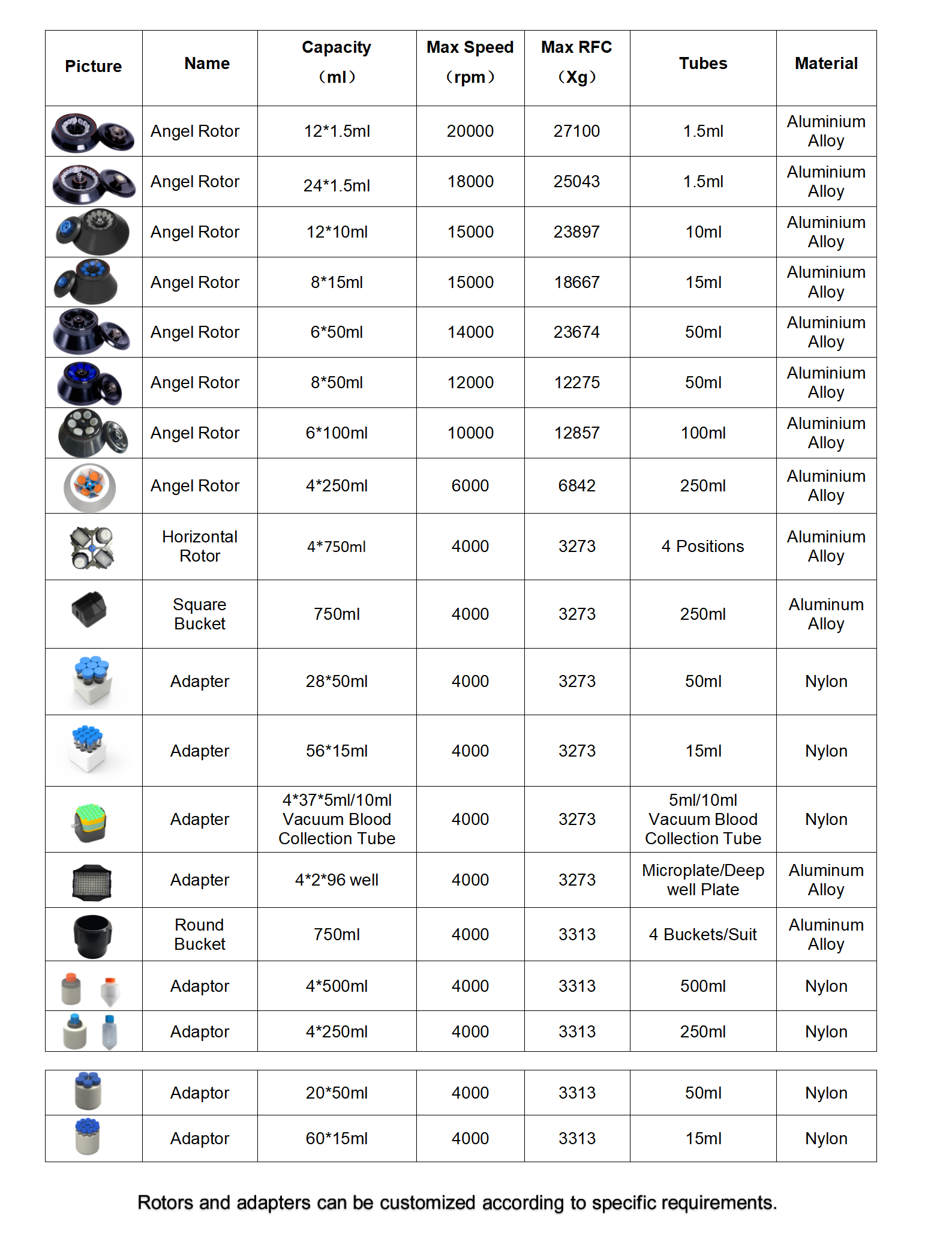

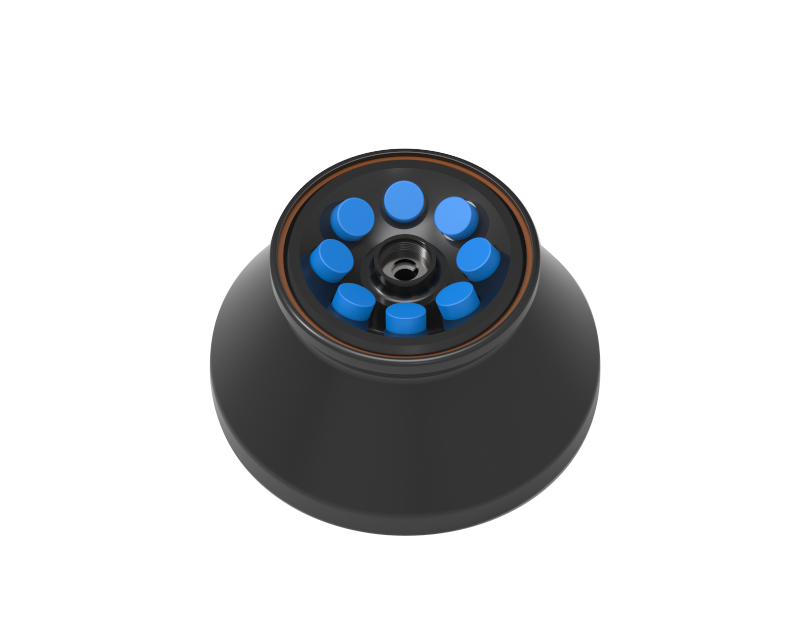

Rotors:
